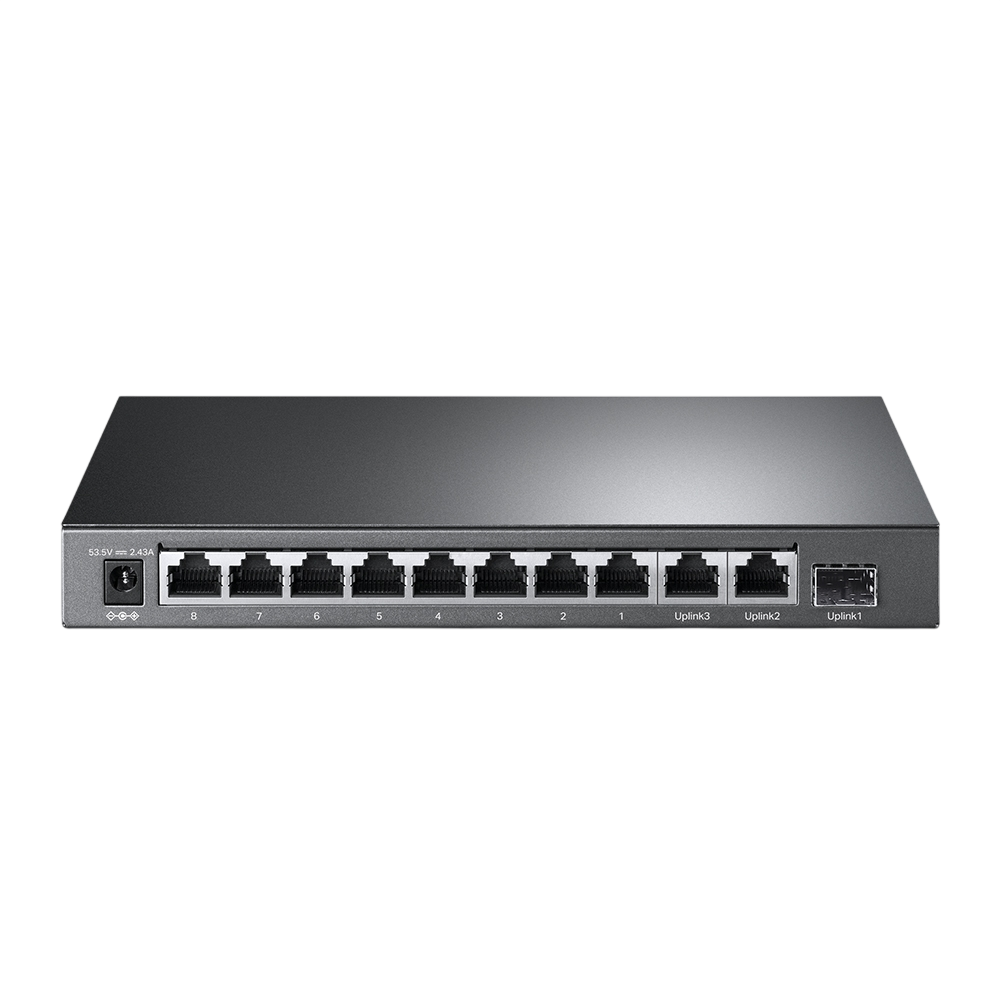

TL-SL1311MP - 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
(TP LINK)
8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 124 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required
TP-Link TL-SL1311MP
11-Port Fast Ethernet Switch with 8-Port PoE+, 2 Gigabit RJ45 & 1 Gigabit SFP Uplink
Interface
8 × 10/100Mbps IEEE 802.3af/at PoE+ Ports (Ports 1–8)
2 × Gigabit RJ45 Uplink Ports
1 × Gigabit SFP Uplink Port
Auto Negotiation
Auto MDI/MDIX
Network Media
10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
Hardware Specifications
Fanless Design
Physical Security Lock
External Power Adapter: 53.5V DC / 2.43A
Dimensions: 209 × 126 × 26 mm
Performance
Switching Capacity: 7.6Gbps
Packet Forwarding Rate: 5.6544Mpps
MAC Address Table: 2K Entries
Jumbo Frame Support: 16KB
Transmission Method: Store-and-Forward
PoE Features
IEEE 802.3af/at Compliant
PoE Ports: Ports 1–8
Total PoE Power Budget: 124W
Power Consumption
5.95W (No PD Connected)
140.92W (With 124W PoE Load)
Heat Dissipation
20.29 BTU/h (No PD Connected)
480.54 BTU/h (With 124W PoE Load)
Certifications
FCC
CE
RoHS
Package Contents
TL-SL1311MP
Power Adapter
Installation Guide
Environmental
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10%–90% RH (Non-condensing)
Storage Humidity: 5%–90% RH (Non-condensing)
Extend Mode Button (Ports 1–4 and Ports 1–8)
Supports up to 250m PoE Power Supply and Data Transmission in Extend Mode
Isolation Mode Button (Ports 1–8)
PoE Auto Recovery Button (Ports 1–8)
MAC Address Auto Learning
MAC Address Auto Aging
IEEE 802.3x Flow Control for Full-Duplex Mode
Backpressure for Half-Duplex Mode
