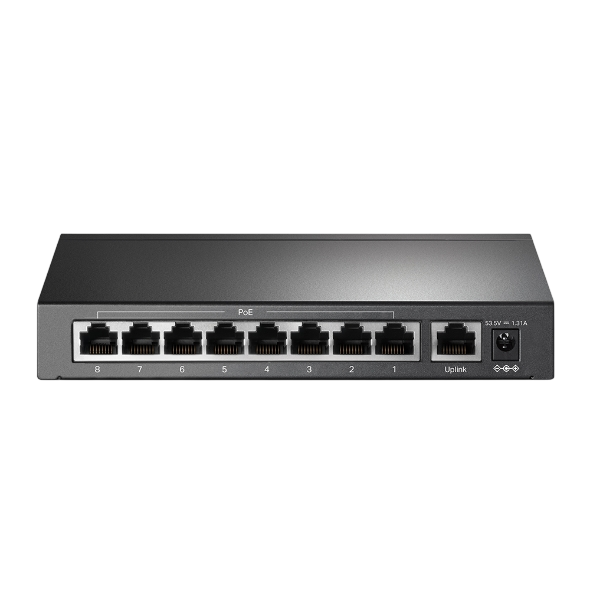

TL-SF1009P - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
(TP LINK)
9× 10/100 Mbps RJ45 ports
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
TP-Link TL-SF1009P
9-Port Fast Ethernet Desktop Switch with 8-Port PoE+
Interface
9 × 10/100Mbps RJ45 Ports
8 × 10/100Mbps IEEE 802.3af/at PoE+ Ports (Ports 1–8)
Auto Negotiation
Auto MDI/MDIX
Network Media
10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
Hardware Specifications
Fanless Design
Physical Security Lock
External Power Adapter: 53.5V DC / 1.31A
Dimensions: 171 × 98 × 27 mm
Performance
Switching Capacity: 1.8Gbps
Packet Forwarding Rate: 1.3392Mpps
MAC Address Table: 2K Entries
Jumbo Frame Support: 2KB
Transmission Method: Store-and-Forward
PoE Features
IEEE 802.3af/at Compliant
PoE Ports: Ports 1–8
Total PoE Power Budget: 65W
Power Consumption
3.6W (No PD Connected)
77.08W (With 65W PoE Load)
Heat Dissipation
12.28 BTU/h (No PD Connected)
262.84 BTU/h (With 65W PoE Load)
Certifications
FCC
CE
RoHS
Package Contents
TL-SF1009P
Power Adapter
Installation Guide
Environmental
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10%–90% RH (Non-condensing)
Storage Humidity: 5%–90% RH (Non-condensing)
Extend Mode Button (Ports 1–4 and Ports 1–8)
Supports up to 250m PoE Power Supply and Data Transmission in Extend Mode
Priority Mode Button (Ports 1–2)
Isolation Mode Button (Ports 1–8)
MAC Address Auto Learning
MAC Address Auto Aging
IEEE 802.3x Flow Control for Full-Duplex Mode
Backpressure for Half-Duplex Mode
