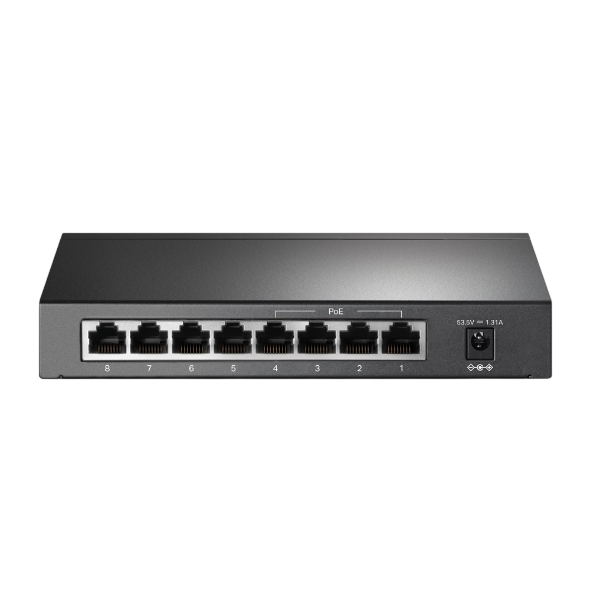

TL-SF1008P - 8-Port 10/100Mbps Desktop Switch with 4-Port PoE+
(TP LINK)
8× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 66 W for all PoE ports*
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required
TP-Link TL-SF1008P
8-Port Fast Ethernet Desktop Switch with 4-Port PoE+
Interface
8 × 10/100Mbps RJ45 Ports
4 × 10/100Mbps IEEE 802.3af/at PoE+ Ports (Ports 1–4)
Auto Negotiation
Auto MDI/MDIX
Network Media
10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
Hardware Specifications
Fanless Design
Physical Security Lock
External Power Adapter: 53.5V DC / 1.31A
Dimensions: 171 × 98 × 27 mm
Performance
Switching Capacity: 1.6Gbps
Packet Forwarding Rate: 1.1904Mpps
MAC Address Table: 2K Entries
Jumbo Frame Support: 2KB
Transmission Method: Store-and-Forward
PoE Features
IEEE 802.3af/at Compliant
PoE Ports: Ports 1–4
Total PoE Power Budget: 66W
Power Consumption
2.27W (No PD Connected)
75.33W (With 66W PoE Load)
Heat Dissipation
7.74 BTU/h (No PD Connected)
256.88 BTU/h (With 66W PoE Load)
Certifications
FCC
CE
RoHS
Package Contents
TL-SF1008P
Power Adapter
Installation Guide
Rubber Feet
Environmental
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10%–90% RH (Non-condensing)
Storage Humidity: 5%–90% RH (Non-condensing)
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
MAC Address Auto Learning
MAC Address Auto Aging
IEEE 802.3x Flow Control for Full-Duplex Mode
Backpressure for Half-Duplex Mode
