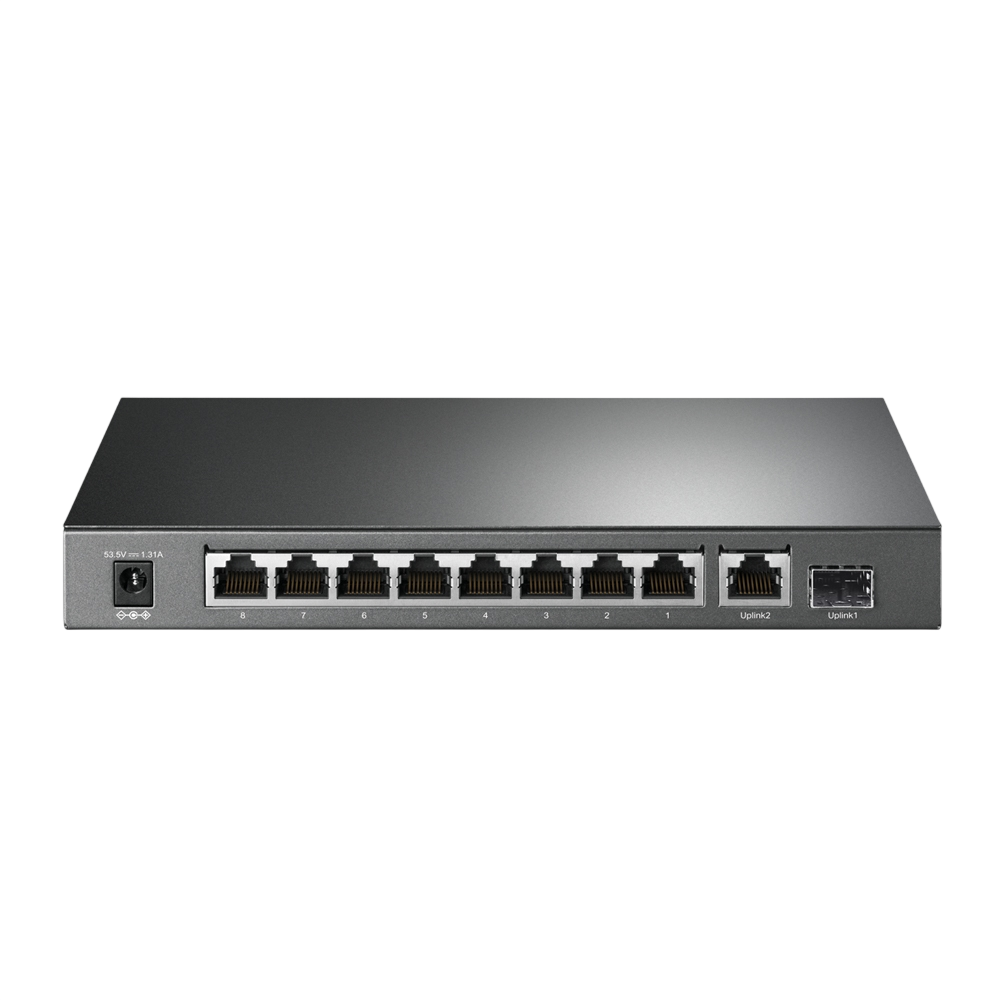

TL-SG1210P - 10-Port Gigabit Desktop Switch with 8-Port PoE+
(TP LINK)
9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
With 8 PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs and expands office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
Up to 250 m data and power transmission range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
Isolation Mode allows one-click client traffic separation for higher security and performance
Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
Easy to use, with no configuration and installation needed
TP-Link TL-SG1210P
10-Port Gigabit Switch with 8-Port PoE+, 1 Gigabit RJ45 & 1 Gigabit SFP Uplink
Interface
8 × 10/100/1000Mbps IEEE 802.3af/at PoE+ RJ45 Ports (Ports 1–8)
1 × 10/100/1000Mbps RJ45 Uplink Port
1 × Gigabit SFP Slot
Auto Negotiation
Auto MDI/MDIX
Network Media
10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
1000BASE-T: UTP Category 5, 5e, 6 or Above Cable (Maximum 100m)
EIA/TIA-568 100Ω STP (Maximum 100m)
1000BASE-X MMF / SMF
Hardware Specifications
Fanless Design
Physical Security Lock
External Power Adapter: 53.5V DC / 1.31A
Dimensions: 209 × 126 × 26 mm
Performance
Switching Capacity: 20Gbps
Packet Forwarding Rate: 14.88Mpps
MAC Address Table: 4K Entries
Jumbo Frame Support: 16KB
Transmission Method: Store-and-Forward
PoE Features
IEEE 802.3af/at Compliant
PoE Ports: Ports 1–8
Total PoE Power Budget: 63W
Power Consumption
7.0W (No PD Connected)
77.24W (With 63W PoE Load)
Heat Dissipation
23.87 BTU/h (No PD Connected)
263.39 BTU/h (With 63W PoE Load)
Certifications
CE
FCC
RoHS
Package Contents
TL-SG1210P
Power Adapter
Installation Guide
Environmental
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10%–90% RH (Non-condensing)
Storage Humidity: 5%–90% RH (Non-condensing)
IEEE 802.3x Flow Control
802.1p / DSCP QoS
IGMP Snooping
Extend Mode Button (Ports 1–4, Supports up to 250m PoE Power Supply and Data Transmission)
Priority Mode Button (Ports 1–2)
Isolation Mode Button (Ports 1–4 / 5–8)
PoE Auto Recovery (Ports 1–8)
