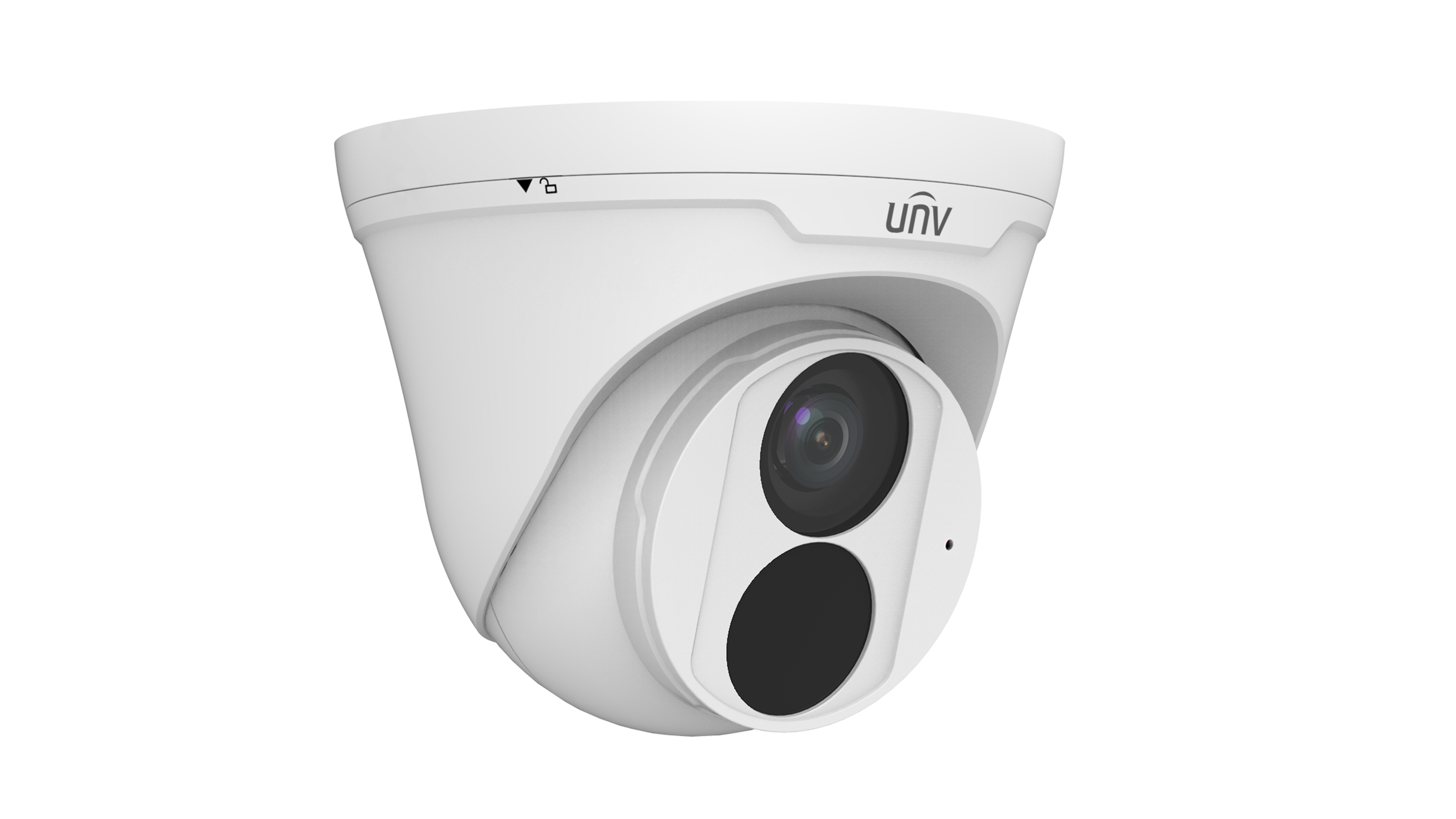

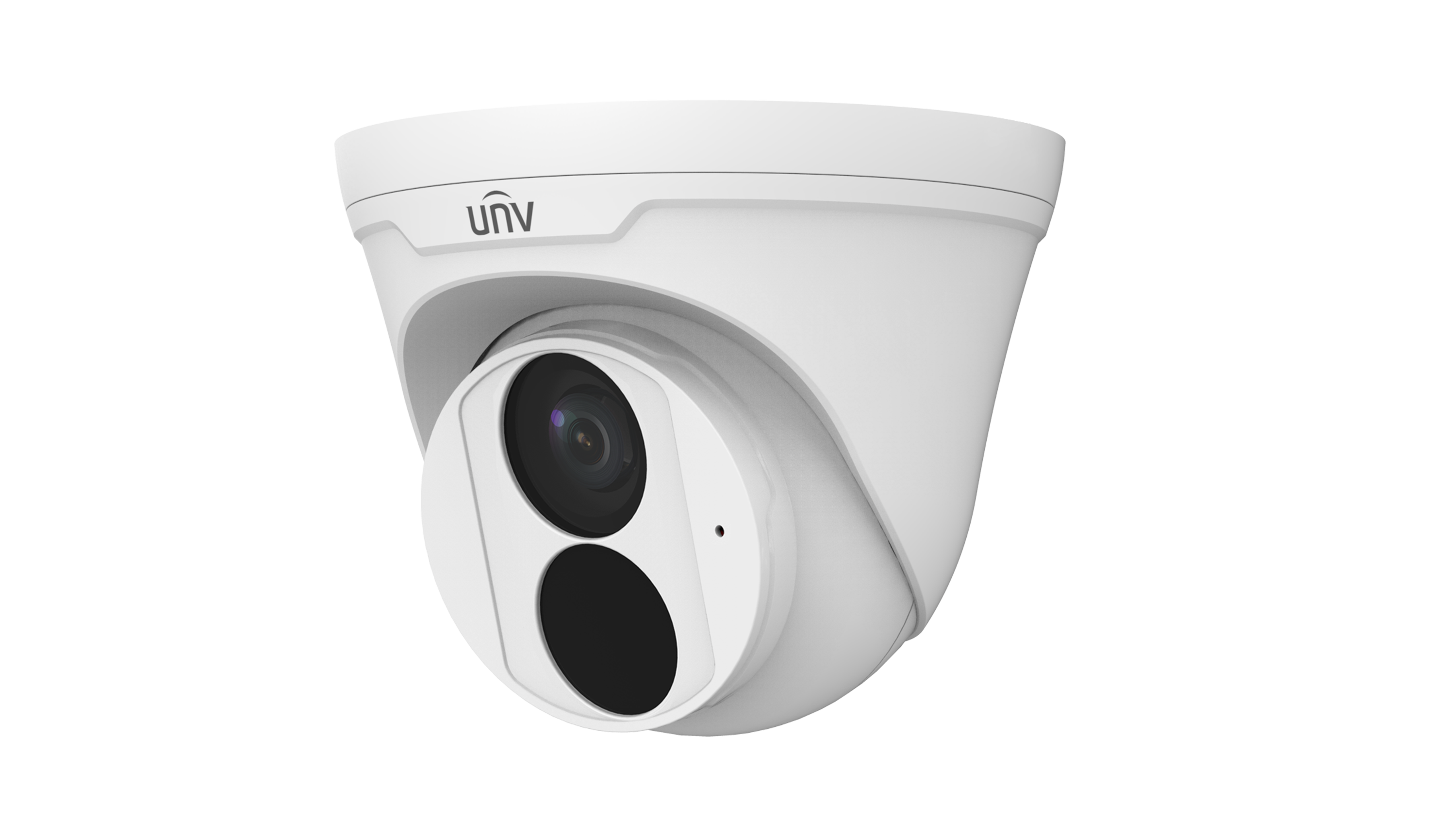

IPC3618LB-ADF28K-G

Description

Max Resolution

• 8 MP (4K)

Sensor

• 1/2.7" CMOS

Min. Illumination

• Color: 0.01 Lux (F1.6, AGC ON), 0 Lux with IR on

Day/Night / Shutter

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

• Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

S/N / WDR

• S/N: >52 dB, WDR: True WDR (120 dB)

Lens Specs

• Focal Length: 2.8 mm

• Iris Type: Fixed, Iris: F1.6

• Field of View: Horizontal: 107.0°, Vertical: 59.7°, Diagonal: 111.5°

DORI Distance (2.8 mm)

• Detect: 63.0 m (206.7 ft)

• Observe: 25.2 m (82.7 ft)

• Recognize: 12.6 m (41.3 ft)

• Identify: 6.3 m (20.7 ft)

Illuminator

• Supplemental Light: IR (ઇન્ફ્રારેડ)

• Illumination Distance (IR): 30 m (98.4 ft)

• Wavelength: 850 nm

• IR On/Off Control: Auto/Manual

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Main Stream: 8 MP (3840 × 2160) @15 fps; 5 MP (2880 × 1620) @25/20 fps; 4 MP (2560 × 1440) @25/20 fps; 3 MP (2304 × 1296) @30/25 fps; 1080P (1920 × 1080) @30/25 fps

• Sub Stream: 720P (1280 × 720) @30/25 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps

• Video Bit Rate: 128 Kbps to 16 Mbps

• U-code / ROI / Video Stream: Support / Support / Dual streams

Image Settings

• OSD: Up to 4 OSDs

• Privacy Mask: Up to 4 areas

• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

• Smart IR / Digital Noise Reduction: Support / 2D/3D DNR

• Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

• HLC / BLC / Defog: Support / Support / Digital defog (Dewarping: N/A)

Events & Intelligent

• Smart Detection: Cross line detection, Intrusion detection (both based on human body detection)

• Basic Detection: Motion detection, Tampering alarm, Audio detection

• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A

• Audio Bitrate: 64 Kbps

• Built-in Mic: Support

• Two-way Audio / Suppression / Speaker: Support (Only Mic) / Support / N/A

• Sampling Rate: 8 kHz

Storage

• Edge Storage: MicroSD, up to 512 GB

• Network Storage: ANR, NAS (NFS)

Interface

• Built-in Mic: Support

• Audio I/O / Alarm I/O / Serial Port / WIFI / Video Output / Built-in Speaker: N/A

• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

• Power Consumption: Max. 4.0 W

• Power Interface: Ø5.5 mm coaxial power plug

• Dimensions: Ø118 mm × 95 mm (Ø4.6" × 3.8") (Ø × H)

• Weight: 0.29 kg (0.63 lb)

• Material: Metal + Plastic

• Working / Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

• Surge Protection / Reset Button: 4 KV / N/A

• Web Client Language: 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
