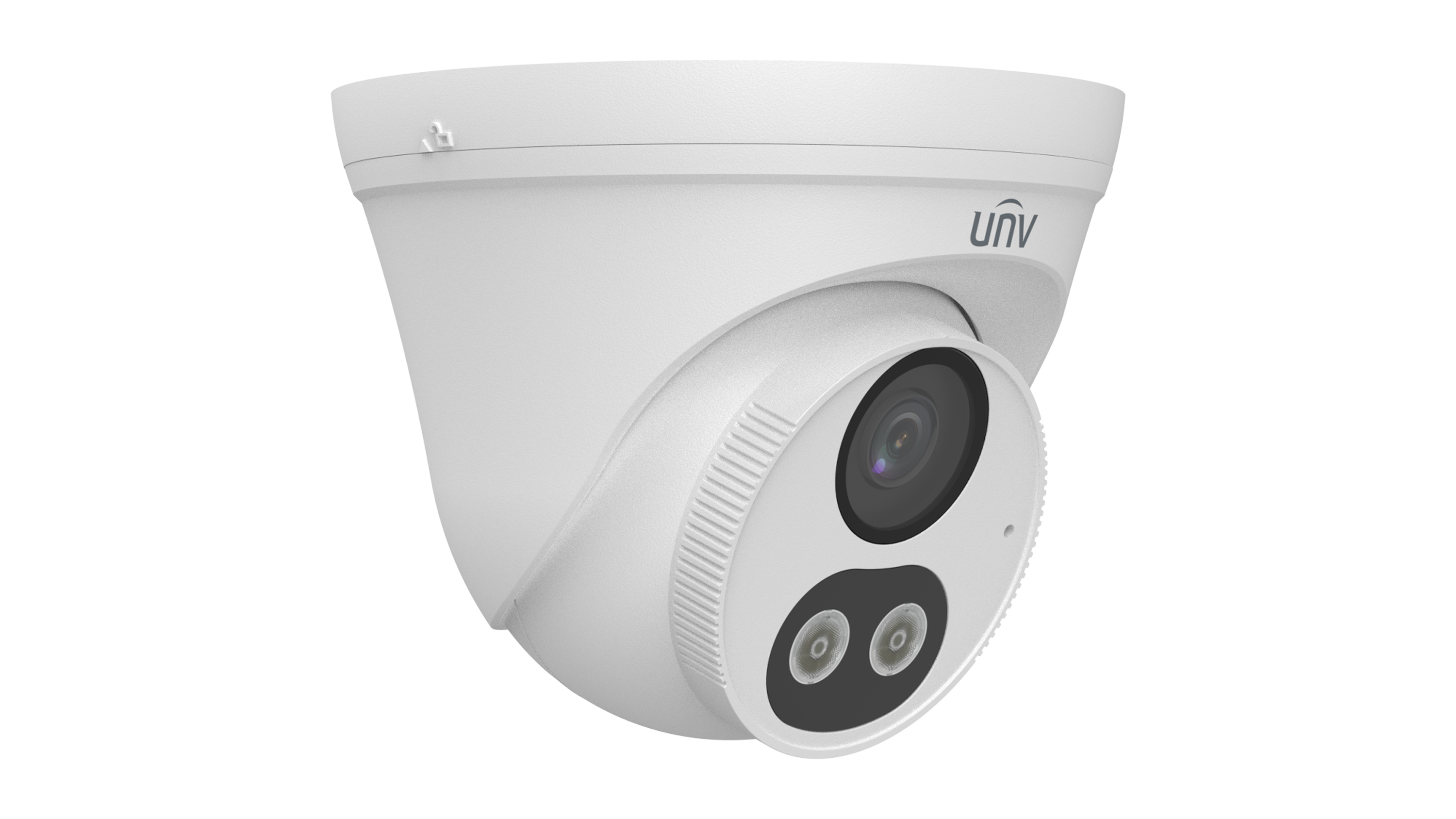

IPC3612LB-AF28-DL-ECO

Description

Max Resolution

• 2 MP (1080P)

Sensor

• 1/3.0" CMOS

Min. Illumination

• Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR on

Day/Night / Shutter

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, 1 to 1/100000 s

Adjustment Angle

• Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°

S/N / WDR

• S/N: > 52 dB

• WDR: DWDR

Lens Specs

• Focal Length: 2.8 mm

• Iris Type: Fixed, Iris: F1.6

• Field of View: H: 85.1°, V: 46.6°, D: 95.5°

• Lens Type: Fixed

DORI Distance

• Detect: 51.4 m (168.7 ft.)

• Observe: 20.6 m (67.5 ft.)

• Recognize: 10.3 m (33.8 ft.)

• Identify: 5.1 m (16.9 ft.)

Illuminator

• Supplemental Light: Dual light

• Illumination Distance (IR): 30 m (98.4 ft.)

• Illumination Distance (Warm Light): 15 m (49.2 ft.)

• Wavelength: 850 nm

• IR On/Off Control: Auto/Manual

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps

• Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps

• Video Bit Rate: 128 Kbps to 6144 Kbps

• U-code / Video Stream: Support / Dual streams

Image Settings

• OSD: Up to 4 OSDs

• Privacy Mask: Up to 4 areas

• ROI: Up to 8 areas

• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance

• Smart IR / Digital Noise Reduction: Support / 2D/3D DNR

• Flip: Normal, Flip vertical, Flip horizontal, 180°

• HLC / BLC / Defog: Support / Support / Digital defog (Dewarping / Image Stabilization: N/A)

Events & Intelligent

• Basic Detection: Motion detection, Audio detection, Human body detection 2.0

• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A

• Audio Bitrate: 64 Kbps

• Built-in Mic: Support

• Two-way Audio / Speaker: N/A

• Suppression / Sampling Rate: Support / 8 kHz

Storage & Network

• Edge Storage: N/A

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP

• Compatible Integration: ONVIF (Profile S, Profile T), API, SDK

• User/Host: Up to 32 users, 2 user levels: administrator and common user

• Security: Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF

• Client: UNV-Link, UNV-Link Pro, EZStation

• Web Browser: Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+. Plug-in free: Chrome 57+, Firefox 58+, Edge 16+

Interface

• Built-in Mic: Support

• Audio I/O / Alarm I/O / Serial Port / WIFI / Video Output / Built-in Speaker / Power Interface: N/A

• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4), FCC (FCC 47 CFR part15 B)

• Safety: CE LVD (EN 62368-1)

• Environment: CE-RoHS (2011/65/EU;(EU)2015/863), WEEE (2012/19/EU)

• Protection: IP67 (IEC 60529)

General

• Power: PoE (IEEE 802.3af)

• Power Consumption: Max. 3.5 W

• Dimensions: Ø118 mm × 100 mm (Ø4.6" × 3.9") (Ø × H)

• Weight: 0.19 kg (0.42 lb.)

• Material: Graphene + Plastic

• Working / Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

• Surge Protection / Reset Button: 4 KV / N/A

• Web Client Language: 1 Language: English
