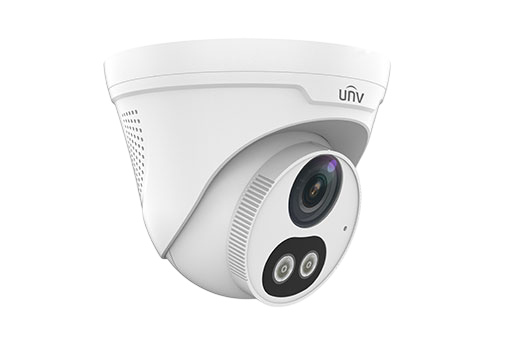

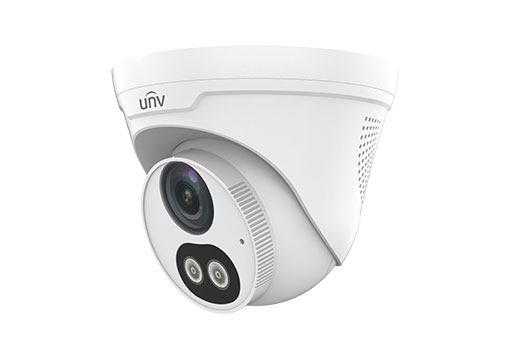

IPC3612LE-ADF28KC-WL / IPC3612LE-ADF40KC-WL

Description

Max Resolution

• 2 MP (1080P)

Sensor

• 1/2.8", 2.0 megapixel, progressive scan, CMOS

Min. Illumination

• Colour: 0.003 lux (F1.6, AGC ON), 0 Lux with IR

Day/Night / Shutter

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

• Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°

S/N / WDR

• S/N: >52dB

• WDR: 120dB

Lens Specs

• Focal Length: 2.8mm @F1.6 / 4.0mm @F1.6

• Iris: Fixed

• Field of View (2.8mm): H: 106.7°, V: 57.1°, D: 115.7°

• Field of View (4.0mm): H: 87.5°, V: 46.3°, D: 92.4°

• Lens Type: Fixed

DORI Distance (2.8mm)

• Detect: 43.4 m

• Observe: 17.4 m

• Recognize: 8.7 m

• Identify: 4.3 m

DORI Distance (4.0mm)

• Detect: 62.1 m

• Observe: 24.8 m

• Recognize: 12.4 m

• Identify: 6.2 m

Illuminator

• IR Range: Up to 30m (98ft) IR range

• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps

• Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF (704288), Max 30fps; CIF (352*288), Max 30fps

• Video Bit Rate: 128 Kbps ~ 6 Mbps

• U-code / Video Stream: Support / Dual streams

Image Settings

• OSD: Up to 4 OSDs

• Privacy Mask: Up to 4 areas

• ROI: Up to 8 areas

• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

• Smart IR / Digital Noise Reduction: Supported / 2D/3D DNR

• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

• HLC / BLC / Defog: Supported / Supported / Digital Defog (Dewarping: N/A)

Events & Intelligent

• Behavior Detection: Cross line, intrusion (based on human body detection)

• Basic Detection: Motion detection, tampering alarm, audio detection

• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A

• Audio Bitrate: 64 Kbps

• Two-way Audio: Support

• Built-in Mic / Built-in Speaker: Support / Support

• Suppression / Sampling Rate: Support / 8KHZ

Storage

• Edge Storage: Micro SD, up to 128 GB

• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP

• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, S

• User/Host: Up to 32 users, 2 user levels: administrator and common user

• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

• Client: EZStation, EZView, EZLive

• Web Browser: Plug-in required: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above. Plug-in free: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Built-in Mic / Built-in Speaker: Support / Support

• Audio I/O / Alarm I/O / RS485 / WIFI / Video Output: N/A

• Network: 1 * RJ45 10M/100M Base-TX Ethernet

Certification

• EMC: CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

• Safety: CE LVD (EN 62368-1:2014+A11:2017), CB (IEC 62368-1:2014), UL (UL 62368-1, 2nd Ed., Issue Date: 2014

• Environment: CE-RoHS (2011/65/EU; (EU)2015/863), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)

• Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:20

General{C}

• Power: DC{C} 12V±25%, PoE (IEEE 802.3af)

• Power Consumption: Max 8.0W

• Power Interface: Ø 5.5mm coaxial power plug

• Dimensions: Φ118 x 95mm (Φ4.6” x 3.8”) (Ø × H)

• Weight: 0.30kg (0.66lb)

• Working / Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection / Reset Button: 4KV / N/A
