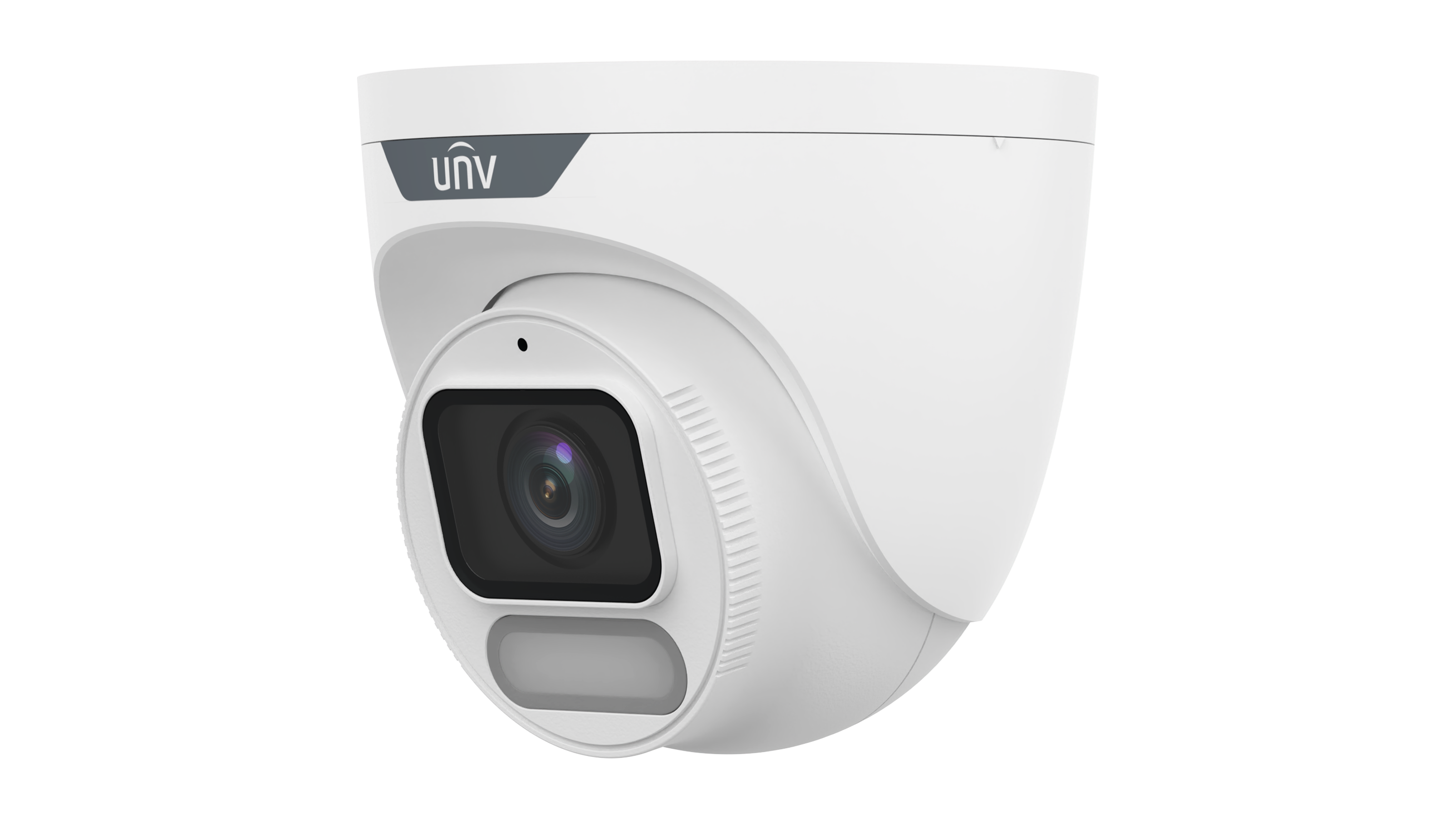

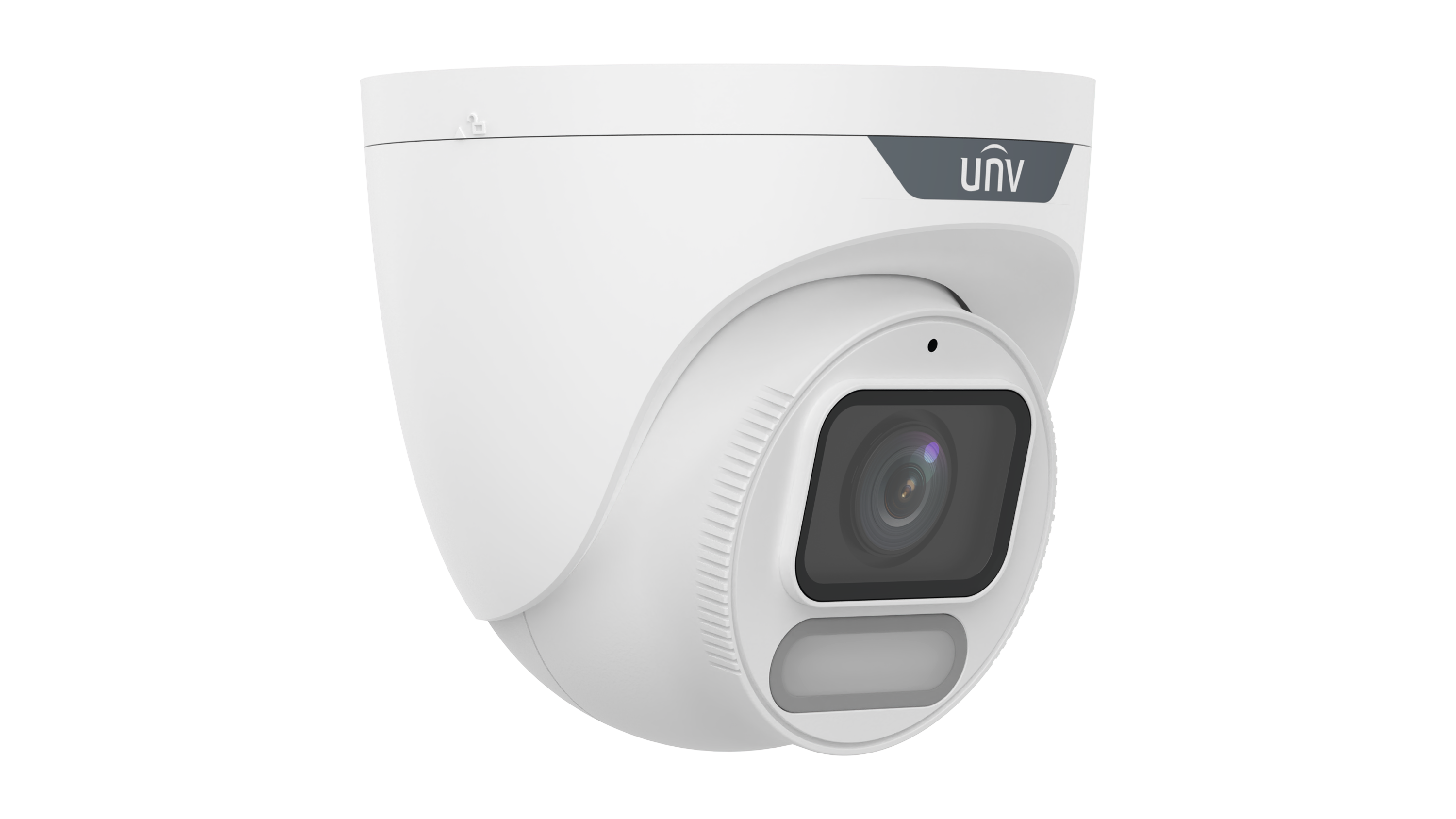

IPC3622LE-ADF28K-WP / IPC3622LE-ADF40K-WP

Camera

• Max Resolution: 2 MP

• Sensor: 1/2.7" CMOS

• Min. Illumination: Color: 0.0003 Lux (F1.0, AGC ON)

• Shutter: Auto/Manual, 1 ~ 1/100000s

• Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

• S/N / WDR: S/N: >52 dB, WDR: 120 dB

Lens

• Focal Length: 2.8 mm / 4.0 mm

• Iris Type & Value: Fixed, F1.0

• Field of View (2.8 mm): H: 99.0°, V: 53.0°, D: 118.0°

• Field of View (4.0 mm): H: 85.4°, V: 47.5°, D: 98.5°

• Lens Type: Fixed

DORI Distance (2.8 mm)

• Detect: 45.0 m (147.6 ft.)

• Observe: 18.0 m (59.1 ft.)

• Recognize: 9.0 m (29.5 ft.)

• Identify: 4.5 m (14.8 ft.)

DORI Distance (4.0 mm)

• Detect: 64.3 m (211.0 ft.)

• Observe: 25.7 m (84.3 ft.)

• Recognize: 12.9 m (42.3 ft.)

• Identify: 6.4 m (21.0 ft.)

Illuminator

• Supplemental Light: Warm light

• Light On/Off Control: Auto/Manual

• Illumination Distance: 30 m (98.4 ft)

Video & Image

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Frame Rate:

  • Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps

  • Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps

• Video Bit Rate: 128 Kbps to 6144 Kbps

• U-code / Video Stream: Support / Dual streams

• OSD / Privacy Mask / ROI: Up to 4 OSDs / Up to 4 areas / Support

• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

• Image Features: Smart Illumination, 2D/3D DNR, Flip (Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise), HLC, BLC, Digital defog (Dewarping: N/A)

Intelligent & Events

• Smart Intrusion Prevention (Lite): Intrusion, crossline detection (both detection are based on human body and vehicle detection)

• Basic Detection: Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection

• General Functions: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression & Bitrate: G.711U, G.711A @ 64 Kbps

• Built-in Mic: Support

• Two-way Audio / Speaker: N/A

• Suppression & Sampling Rate: Support, 8 kHz

Storage & Network

• Edge Storage: MicroSD, up to 512 GB

• Network Storage: ANR, NAS (NFS)

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS{C}

  {C}{C}{C}{C}{C}{C}{C}{C}

  {C}{C}{C}{C}{C}{C}{C}{C}



• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK{C}{C}

  {C}{C}{C}{C}{C}{C}{C}{C}

  {C}{C}{C}{C}{C}{C}{C}{C}



• User/Host: Up to 32 users (2 user levels: administra{C}tor and common user){C}

  {C}{C}{C}{C}{C}{C}{C}{C}

  {C}{C}{C}{C}{C}{C}{C}{C}



• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for {C}RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

• Client: EZStation, APP

• Web Browser:

  • Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

  • Plug-in free: Chrome 57+, Firefox 58+, Edge 16+

Interface

• Built-in Mic: Support

• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

• Audio I/O / Alarm I/O / Serial Port / WIFI / Video Output: N/A

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)

• Safety: CE LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

• Protection: IP67 (IEC 60529)

General

• Power: DC 12 V±25%, PoE (IEEE 802.3af)

• Power Consumption: Max. 2.6 W

• Power Interface: Ø5.5 mm coaxial power plug

• Dimensions: Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)

• Weight: 0.47 kg (1.04 lb)

• Material: Metal + Plastic

• Working / Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

• Surge Protection: 4 KV

• Reset Button: Support

• Web Client Language: 13 Languages (English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian)
