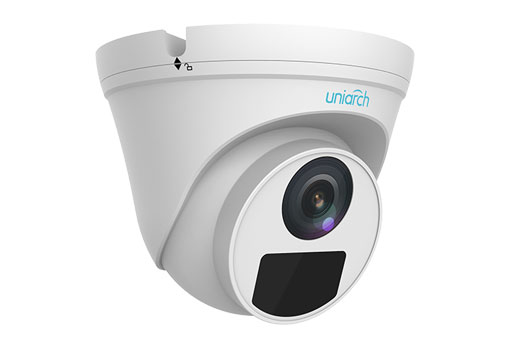

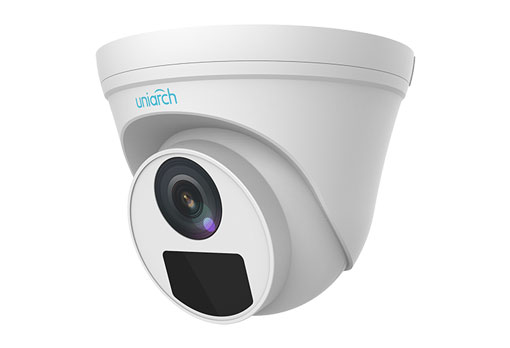

IPC-T124-PF28 / IPC-T124-PF40

Camera

• Max Resolution: 4 MP (2560 × 1440)

• Sensor: 1/2.7", progressive scan, CMOS

• Min. Illumination: Colour: 0.02Lux (F2.1, AGC ON), 0Lux with IR on

• Shutter: Auto/Manual, 1 ~ 1/100000s

• Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°

• S/N / WDR: S/N: >52dB, DWDR (Digital WDR)

Lens

• Focal Length & Aperture: 2.8mm @F2.1 / 4.0mm @F2.1

• Field of View (2.8mm): H: 112.7°, V: 60.1°, D: 146.5° (Angle of View 'O')

• Field of View (4.0mm): H: 86.5°, V: 44.1°, D: 106.4° (Angle of View 'O')

DORI Distance (2.8mm)

• Detect: 56.0 m

• Observe: 22.4 m

• Recognize: 11.2 m

• Identify: 5.6 m

DORI Distance (4.0mm)

• Detect: 80.0 m

• Observe: 32.0 m

• Recognize: 16.0 m

• Identify: 8.0 m

Illuminator

• IR Range: Up to 30m (98ft) IR range

• Day/Night: IR-cut filter with auto switch (ICR)

Video & Image

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main Profile

• Frame Rate:

  • Main Stream: 4MP (25601440), Max 20fps; 1080P (19201080), Max 20fps

  • Sub Stream: 720P (1280*720), Max 20fps

• OSD / Privacy Mask / ROI / Motion Detection: Up to 4 OSDs / Up to 4 areas / Up to 2 areas / Up to 4 areas

• Image Features: 2D/3D DNR, HLC, BLC, Digital Defog

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, RTMP

• Compatible Integration: ONVIF (Profile S, Profile T), API

Interface

• Network: 10/100M Base-TX Ethernet

General

• Power: DC 12V±25%, PoE

• Power Consumption: Max 4.5W

• Dimensions: Ø118.1 x 96.6mm (Ø4.6” x 3.8”) (Ø × H)

• Weight: 0.27kg (0.60lb)

• Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Ingress Protection: IP67
