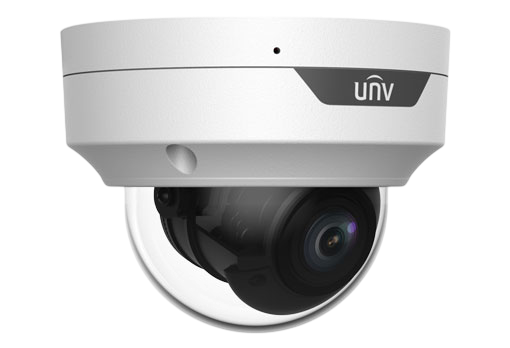

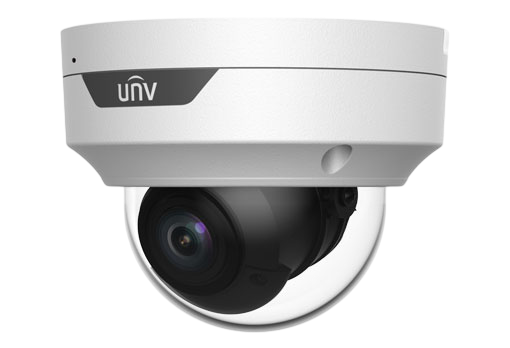

IPC3532LB-ADZK-G

Camera

• Max Resolution: 2 MP (1080P)

• Sensor: 1/2.7", 2.0 megapixel, progressive scan, CMOS

• Min. Illumination: Colour: 0.005 lux (F1.6, AGC ON), 0 lux with IR

• Shutter: Auto/Manual, 1 ~ 1/100000s

• Adjustment Angle: Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360°

• S/N / WDR: S/N: >52dB, WDR: 120dB

Lens

• Focal Length: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

• Iris: Fixed

• Field of View (H): 108.05° ~ 32.59°

• Field of View (V): 56.81° ~ 18.36°

• Field of View (D): 111.91° ~ 36.53°

DORI Distance (2.8 mm)

• Detect: 42.0 m

• Observe: 16.8 m

• Recognize: 8.4 m

• Identify: 4.2 m

DORI Distance (12.0 mm)

• Detect: 180.0 m

• Observe: 72.0 m

• Recognize: 36.0 m

• Identify: 18.0 m

Illuminator

• IR Range: Up to 40m (131ft) IR range

• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

Video & Image

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Frame Rate:

  • Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps

  • Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF (704288), Max 30fps; CIF (352*2, Max 30fps

• Video Bit Rate: 128 Kbps ~ 6144 Kbps

• U-code / Video Stream: Support / Dual streams

• OSD / Privacy Mask / ROI: Up to 4 OSDs / Up to 4 areas / Up to 8 areas

• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

• Image Features: Smart IR, 2D/3D DNR, Flip (Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise), HLC, BLC, Digital Defog (Dewarping: N/A)

Intelligent & Events

• Behavior Detection: Cross line, intrusion (based on human body detection)

• Basic Detection: Motion detection, tampering alarm, audio detection

• General Functions: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Audio

• Audio Compression & Bitrate: G.711U, G.711A @ 64 Kbps

• Built-in Mic: Support

• Two-way Audio / Speaker: N/A

• Suppression & Sampling Rate: Support, 8KHZ

Storage & Network

• Edge Storage: Micro SD, up to 128GB

• Network Storage: ANR, NAS (NFS)

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP

• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK

• User/Host: Up to 32 users (2 user levels: administrator and common user)

• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for {C}RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

• Client: EZStation, EZView, EZLive

• Web Browser:

  • Plug-in required: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

  • Plug-in free: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

• Built-in Mic: Support

• Network: 1 * RJ45 10M/100M Base-TX Ethernet

• Audio I/O / Alarm I/O / Serial Port / WIFI / Video Output / Built-in Speaker: N/A

Certification & Protection

• EMC: CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020), FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

• Safety: CE LVD (EN 62368-1:2014+A11:2017), CB (IEC 62368-1:2014), UL (UL 62368-1, 2nd Ed., Issue Date: 2014

• Environment: CE-RoHS (2011/65/EU;(EU)2015/863), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006)

• Ingress Protection: IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

• Vandal Resistance: IK10 (IEC 62262:2002)

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)

• Power Consumption: Max 7.5W

• Power Interface: Ø 5.5mm coaxial power plug

• Dimensions: Φ128mm x 100mm (Ø5.0” x 3.9”) (Ø × H)

• Weight: 0.66kg (1.46lb)

• Material: Metal + Plastic

• Working / Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection: 6KV

• Reset Button: Support
