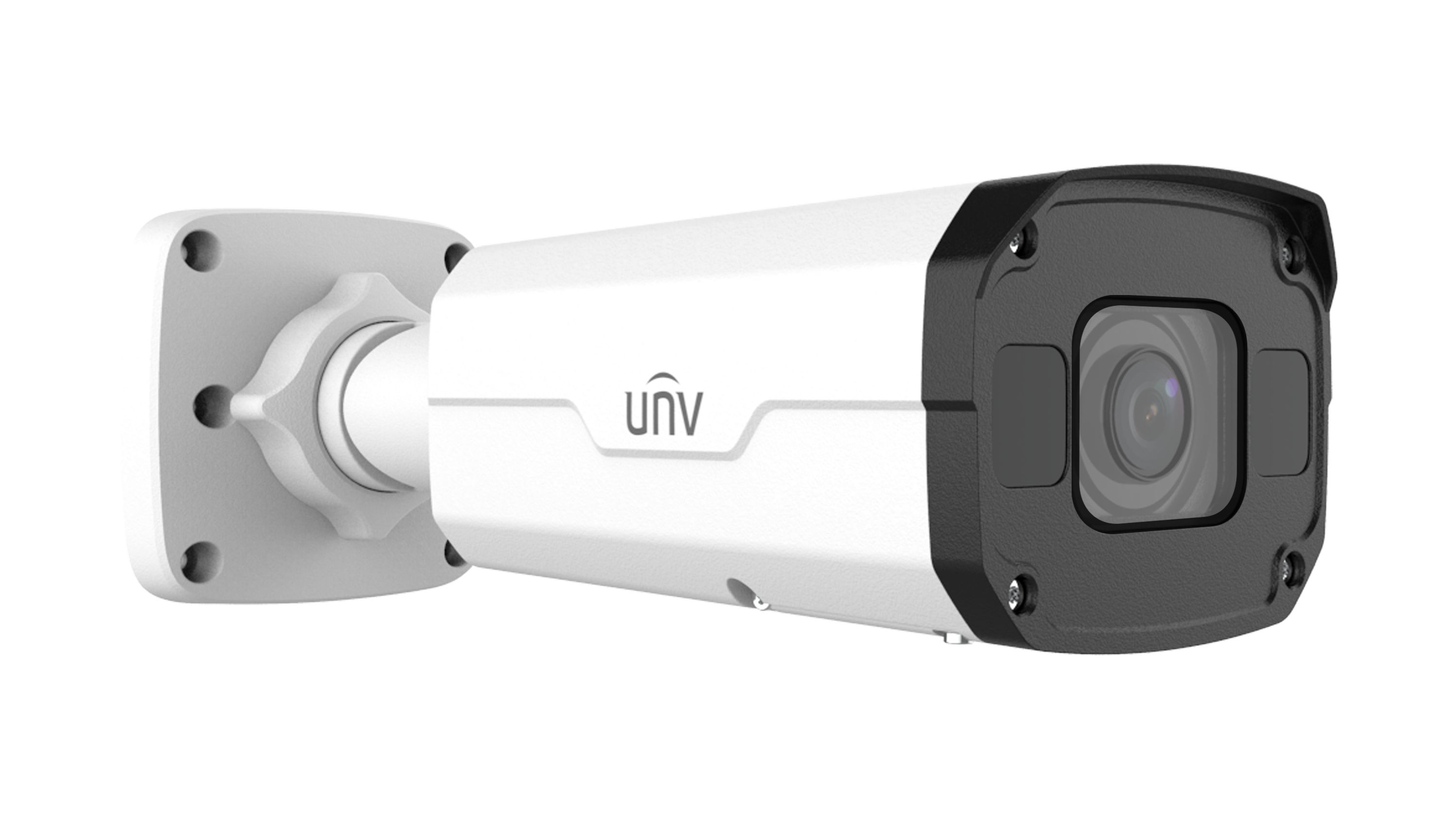

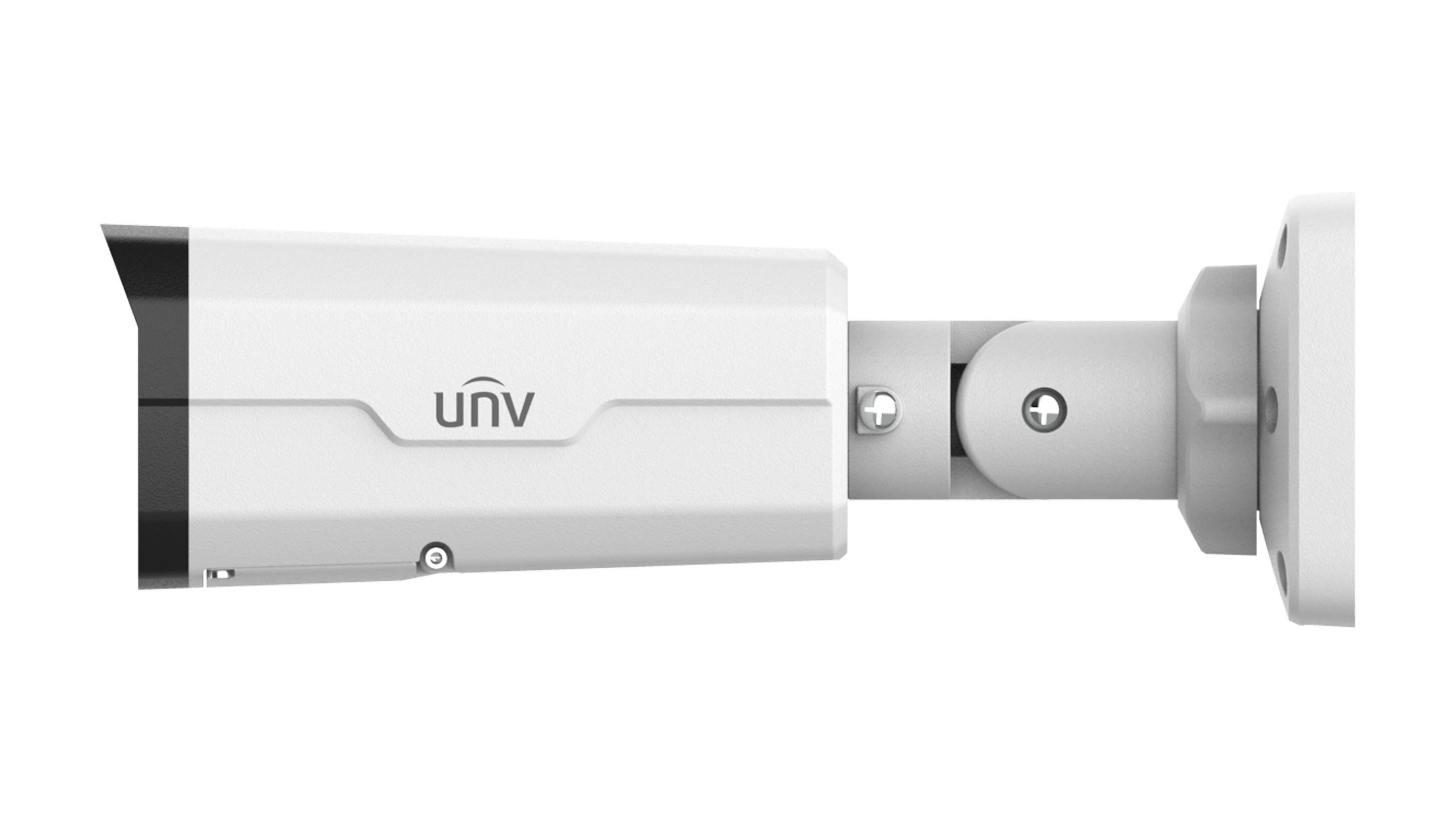

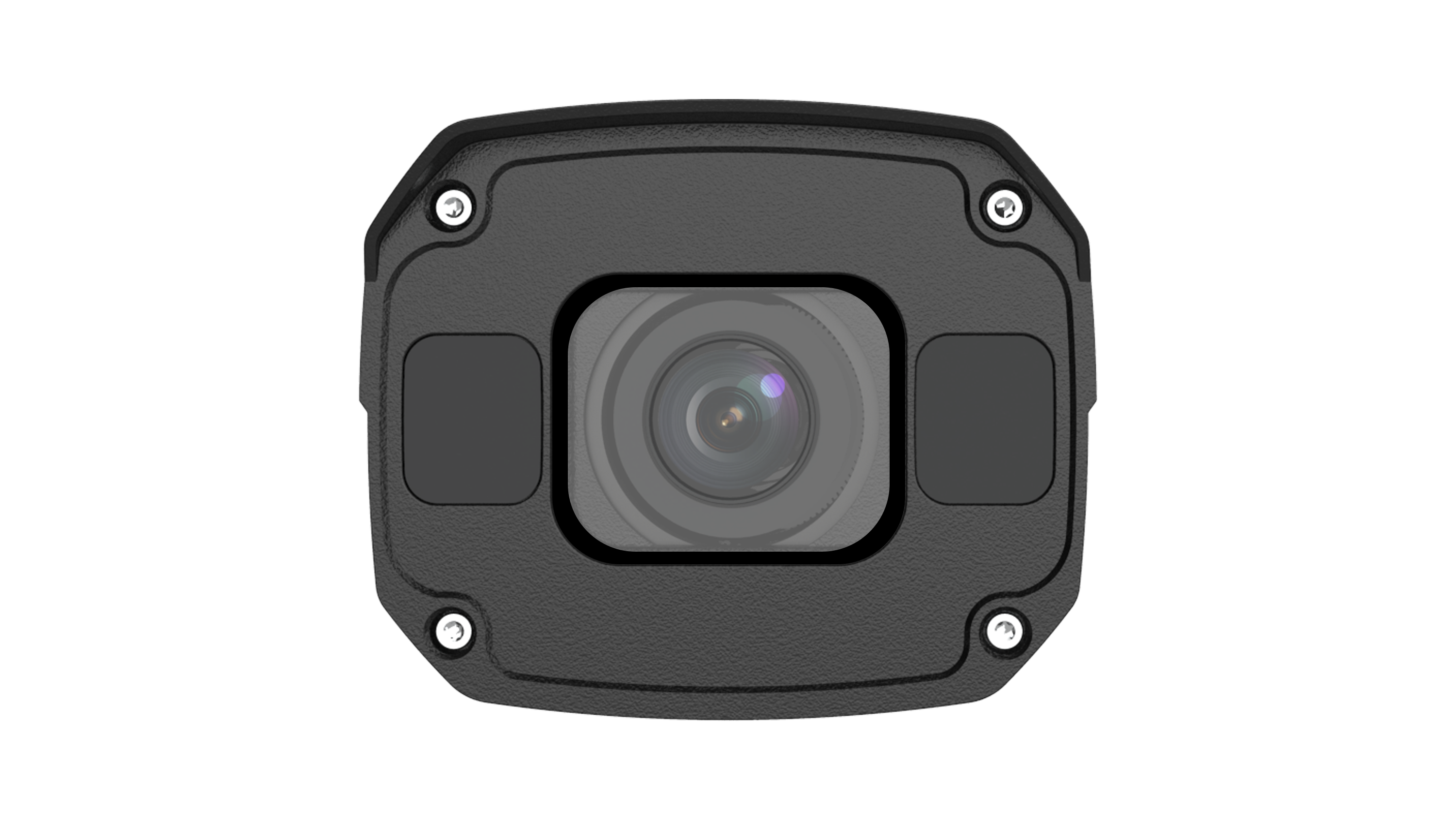

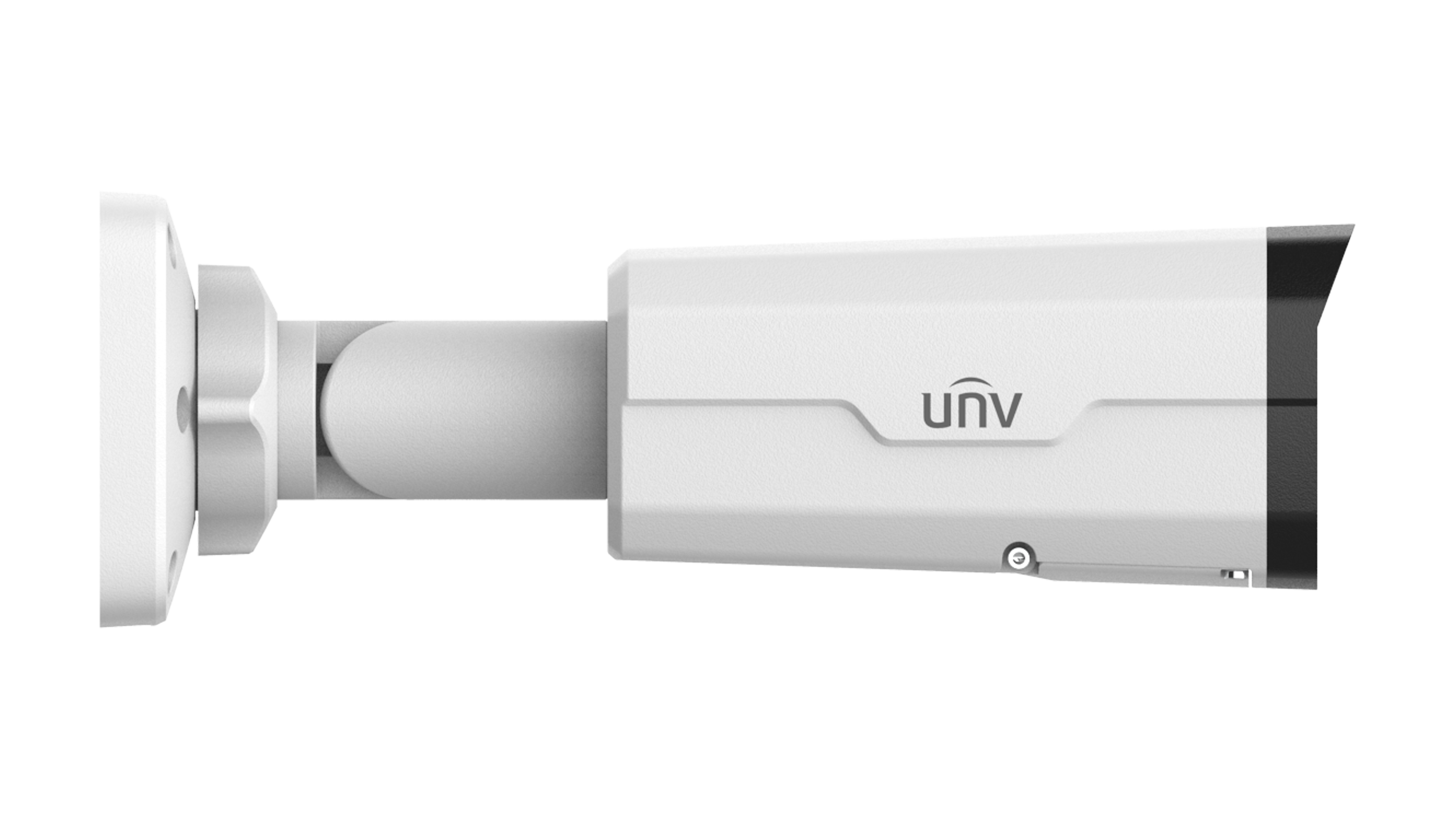

IPC2328SB-DZK-I0

Description

Max Resolution

• 8 MP (4K)

Sensor

• 1/2.8" CMOS

Min. Illumination

• Color: 0.0025 Lux (F1.6, AGC ON), 0 Lux with IR

Day/Night / Shutter

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

• Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

WDR / S/N

• WDR: 120 dB

• S/N: > 56 dB

Lens Specs

• Focal Length: 2.8 to 12 mm

• Iris: F1.6

• Field of View (H): 107.4° to 29.2°

• Field of View (V): 54.2° to 16.3°

• Field of View (D): 111.0° to 33.1°

• Lens Type: Motorized

• Iris Type: Fixed

DORI Distance

• Detect: 86.9 m to 372.4 m (285.1 ft. to 1121.8 ft)

• Observe: 34.8 m to 149.0 m (114.2 ft. to 488.8 ft)

• Recognize: 17.4 m to 74.5 m (57.1 ft. to 244.4 ft)

• Identify: 8.7 m to 37.2 m (28.5 ft. to 112.0 ft)

Illuminator

• Illumination Distance (IR): 50 m (164.0 ft)

• Wavelength: 850 nm

• IR On/Off Control: Auto/Manual

• Supplemental Light: IR

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps

• Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps

• Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps

• Video Bit Rate: 128 Kbps to 16 Mbps

• U-code / ROI / Video Stream: Support / Support / Triple streams

Image Settings

• OSD: Up to 8 OSDs

• Privacy Mask: Up to 4 areas

• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

• Smart IR: Support

• Digital Noise Reduction: 2D/3D DNR

• Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

• Dewarping / HLC / BLC / Defog: Support / Support / Support / Digital defog

• Image Stabilization: N/A

Intelligent & Events

• People Counting: Support people flow counting and crowd density detection

• Statistical Analysis: N/A

• Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection

• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A, AAC-LC

• Audio Bitrate: G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps

• Two-way Audio: Support

• Suppression: Support

• Sampling Rate: G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz

• Built-in Mic / Built-in Speaker: N/A

Storage

• Edge Storage: MicroSD, up to 512 GB

• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, SSH

• Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK

• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

• Client: EZStation, APP

• Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+. Plug-in free live view: Chrome 57+, Firefox 58+, Edge 1{C}6+

Interface

• Audio I/O: 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]

• Alarm I/O: 1/1

• Serial Port / Built-in Mic / Built-in Speaker / WIFI / Video Output: N/A

• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)

• Safety: CE LVD (EN 62368-1), CB (IEC 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

• Protection: IP67 (IEC 60529), IK10 (IEC 62262)

General

• Power: DC 12 V±25%, PoE (IEEE 802.3af)

• Power Consumption: Max. 10.5 W

• Power Interface: Ø5.5 mm coaxial power plug

• Dimensions: 245 mm × 86 mm × 72 mm (9.6" × 3.4" × 2.8") (L × W × H)

• Weight: 0.92 kg (2.03 lb)

• Material: Metal

• Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

• Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

• Surge Protection: 6 KV

• Reset Button: N/A

• Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
