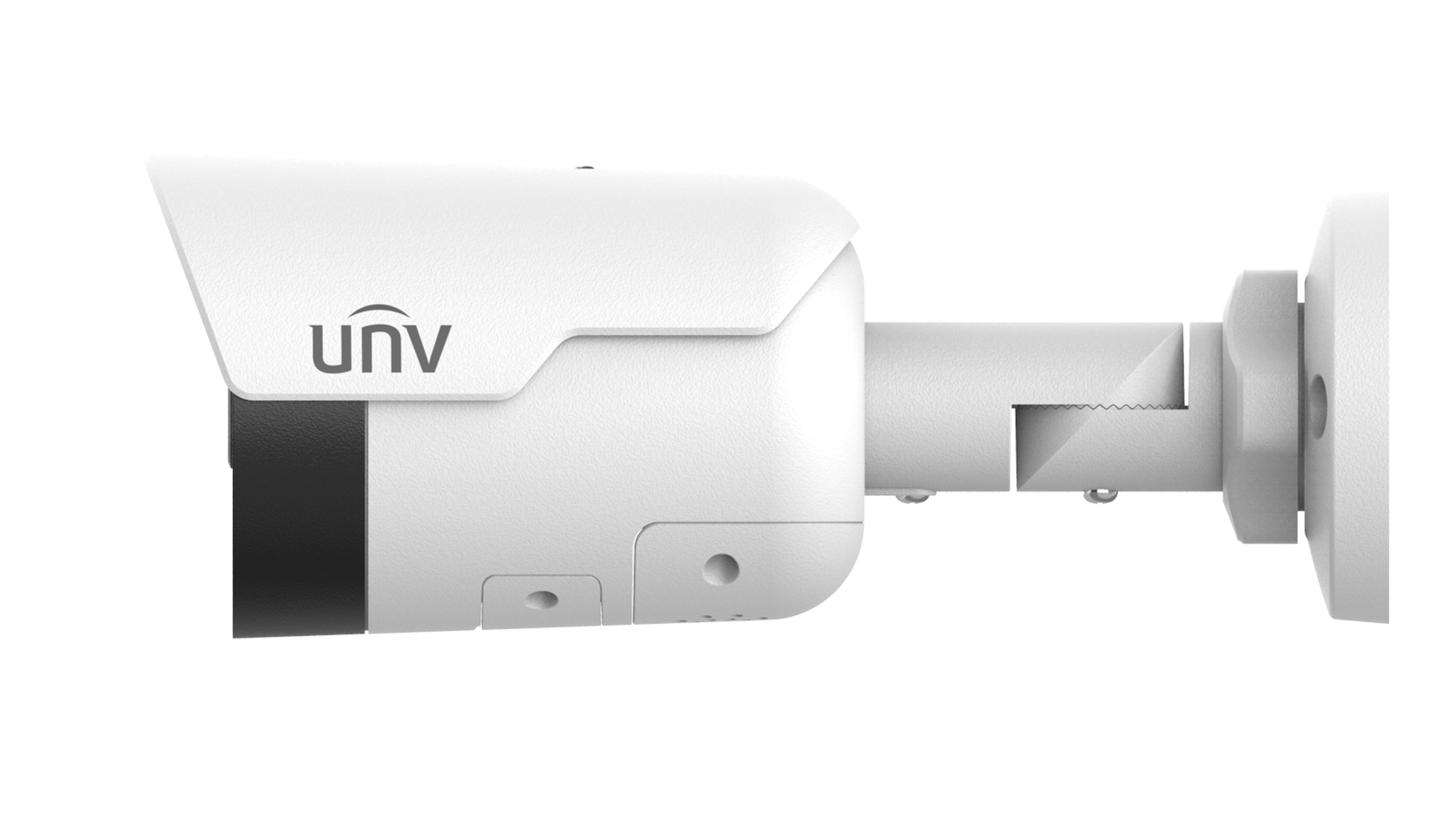

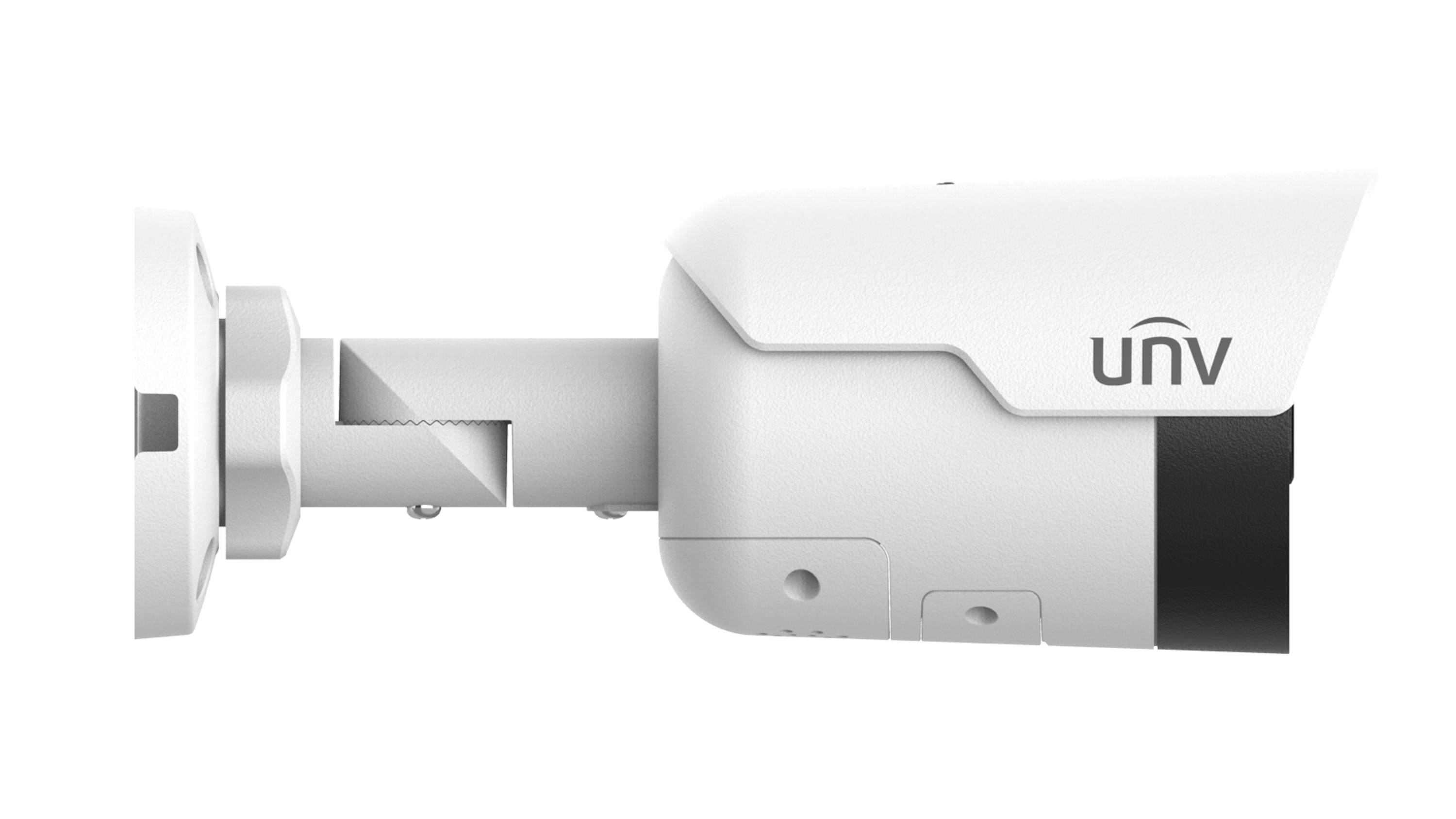

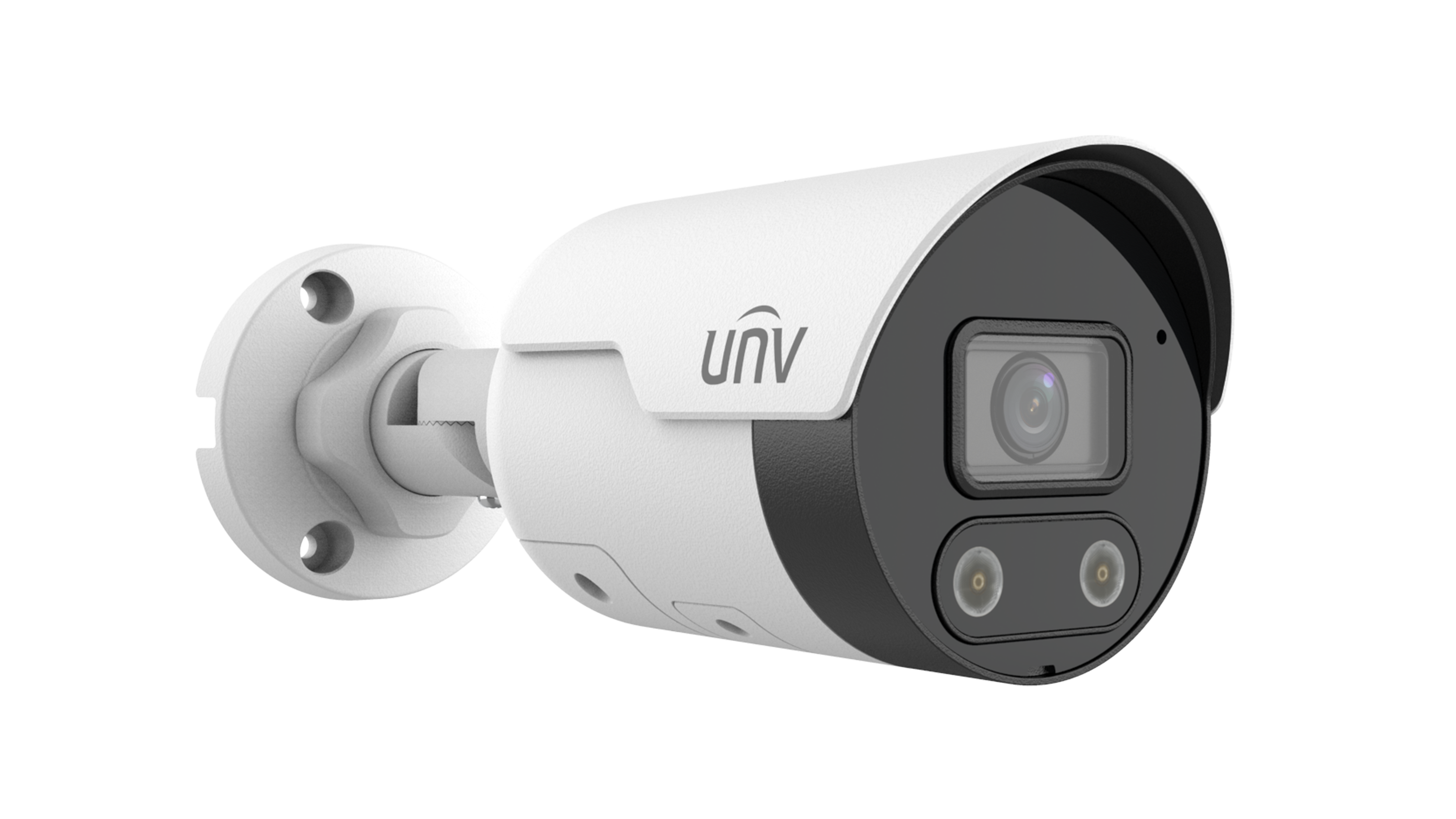

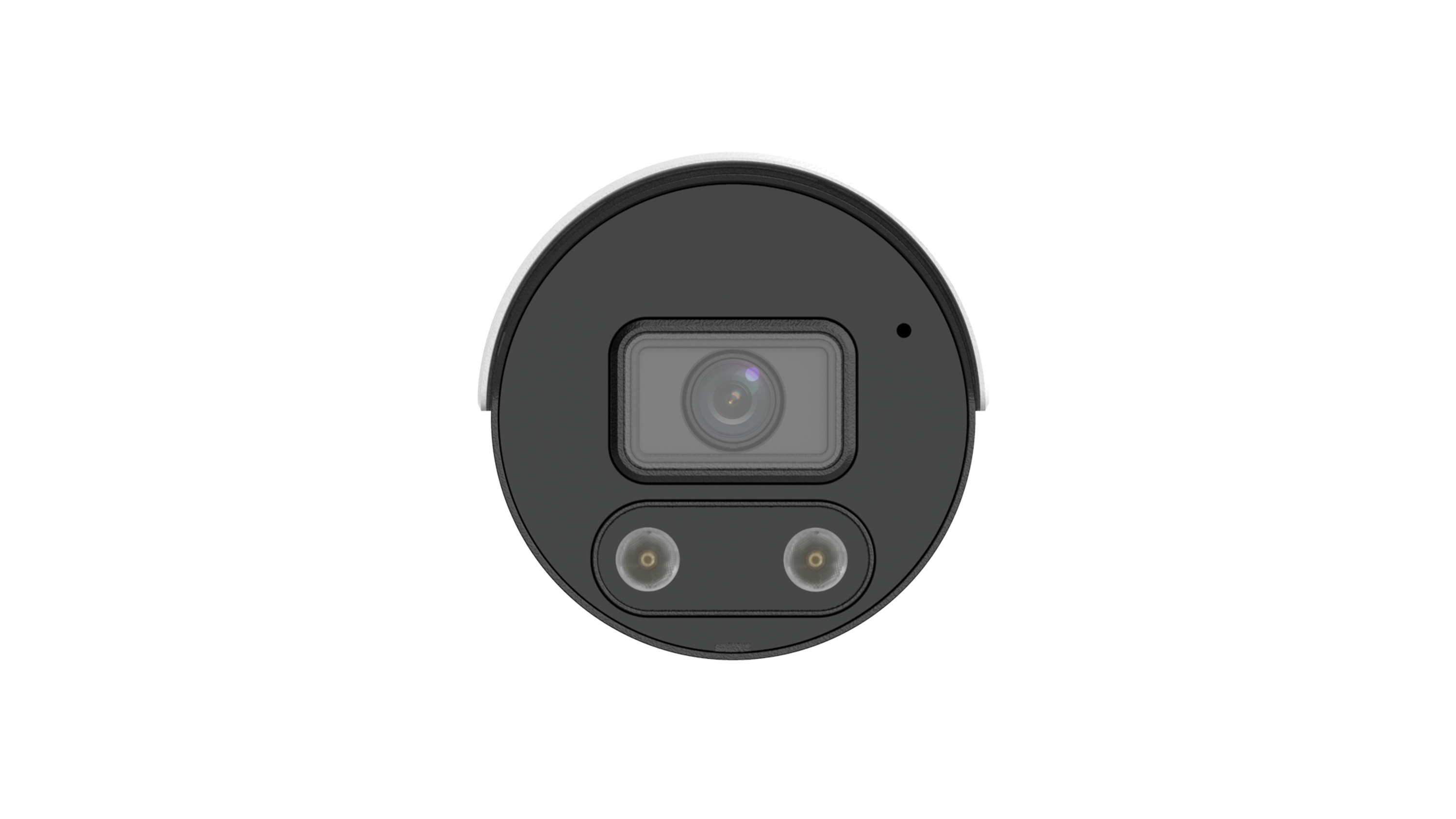

IPC2124LE-ADF28KMC-WL / IPC2124LE-ADF40KMC-WL

Max Resolution

• 4 MP

Sensor

• 1/3.0" CMOS

Min. Illumination

• Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light

Day/Night / Shutter

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

• Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N / WDR

• S/N: >52 dB, WDR: True WDR (120 dB)

Lens Specs

• Focal Length: 2.8 mm / 4.0 mm

• Iris Type: Fixed, Iris: F1.6

• Field of View (2.8 mm): H: 112.9°, V: 59.1°, D: 121.2°

• Field of View (4.0 mm): H: 91.2°, V: 47.9°, D: 95.9°

DORI Distance (2.8 mm)

• Detect: 63.0 m (206.7 ft.)

• Observe: 25.2 m (82.7 ft.)

• Recognize: 12.6 m (41.3 ft.)

• Identify: 6.3 m (20.7 ft.)

DORI Distance (4.0 mm)

• Detect: 90.0 m (295.3 ft.)

• Observe: 36.0 m (118.1 ft.)

• Recognize: 18.0 m (59.1 ft.)

• Identify: 9.0 m (29.5 ft.)

Illuminator

• Supplemental Light: Dual light (IR + Warm Light)

• Illumination Distance (IR): 30 m (98.4 ft)

• Illumination Distance (Warm Light): 30 m (98.4 ft)

• Wavelength: 850 nm

• Light On/Off Control: Auto/Manual

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• U-code{C} / ROI: Support / Support

• Video Stream: Dual streams

Image Settings

• OSD: Up to 4 OSDs

• Privacy Mask: Up to 4 areas

• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

• Digital Noise Reduction: 2D/3D DNR

• Smart IR: Support

• Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

• HLC / BLC / Defog: Support / Support / Digital defog (Dewarping: N/A)

Events & Intelligent

• Smart Intrusion Prevention: Cross line detection, Intrusion detection (both based on human body detection)

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection

• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A

• Audio Bitrate: 64 Kbps

• Two-way Audio: Support

• Suppression / Sampling Rate: Support / 8 kHz

Storage

• Edge Storage: MicroSD, up to 512 GB

• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE

• Client: UNV-Link, UNV-Link Pro, EZStation

Interface

• Built-in Mic: Support

• Built-in Speaker: Support

• Audio I/O / Alarm I/O / Serial Port / WIFI / Video Output: N/A

• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

• Web Client Language: 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
