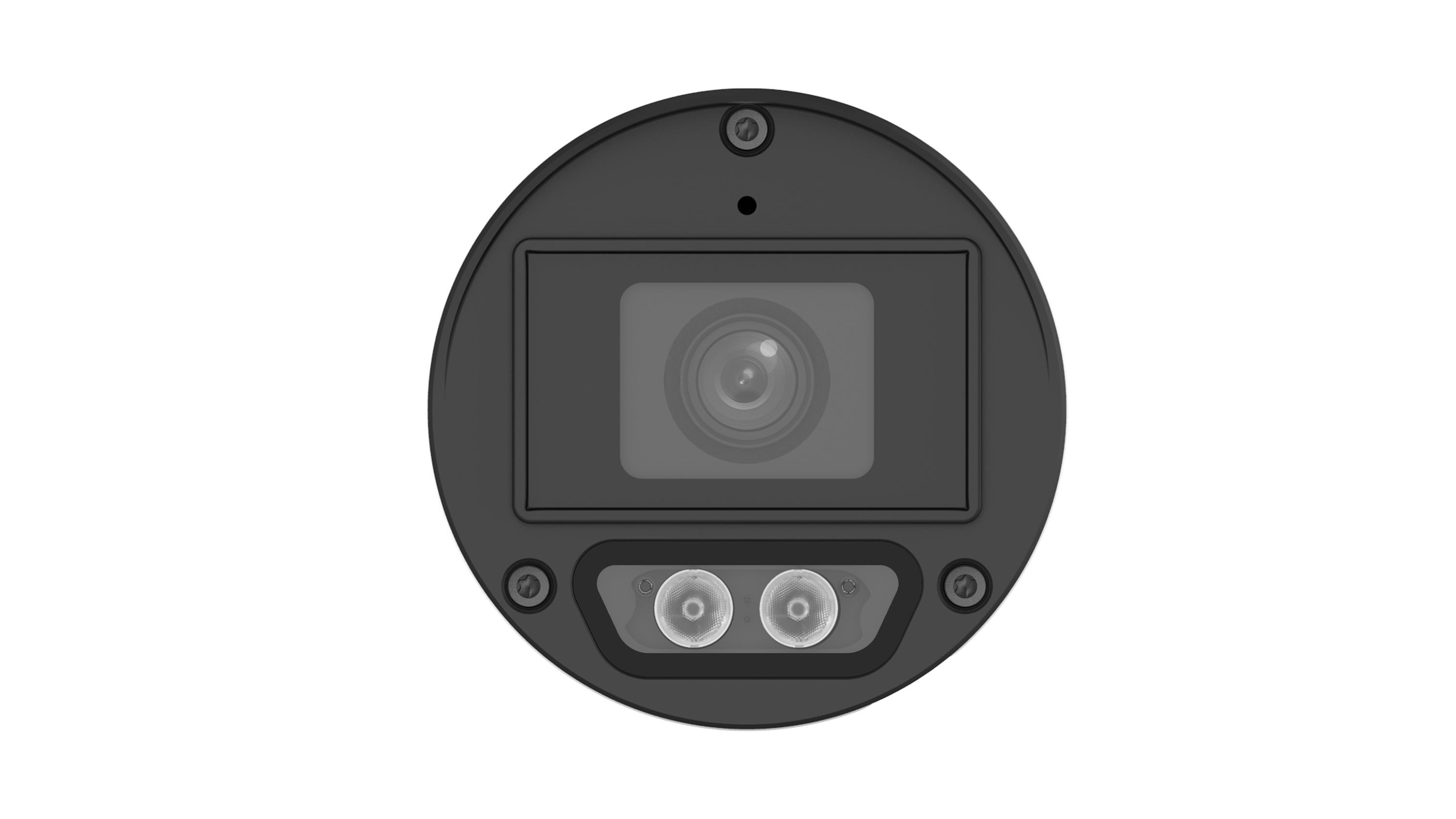

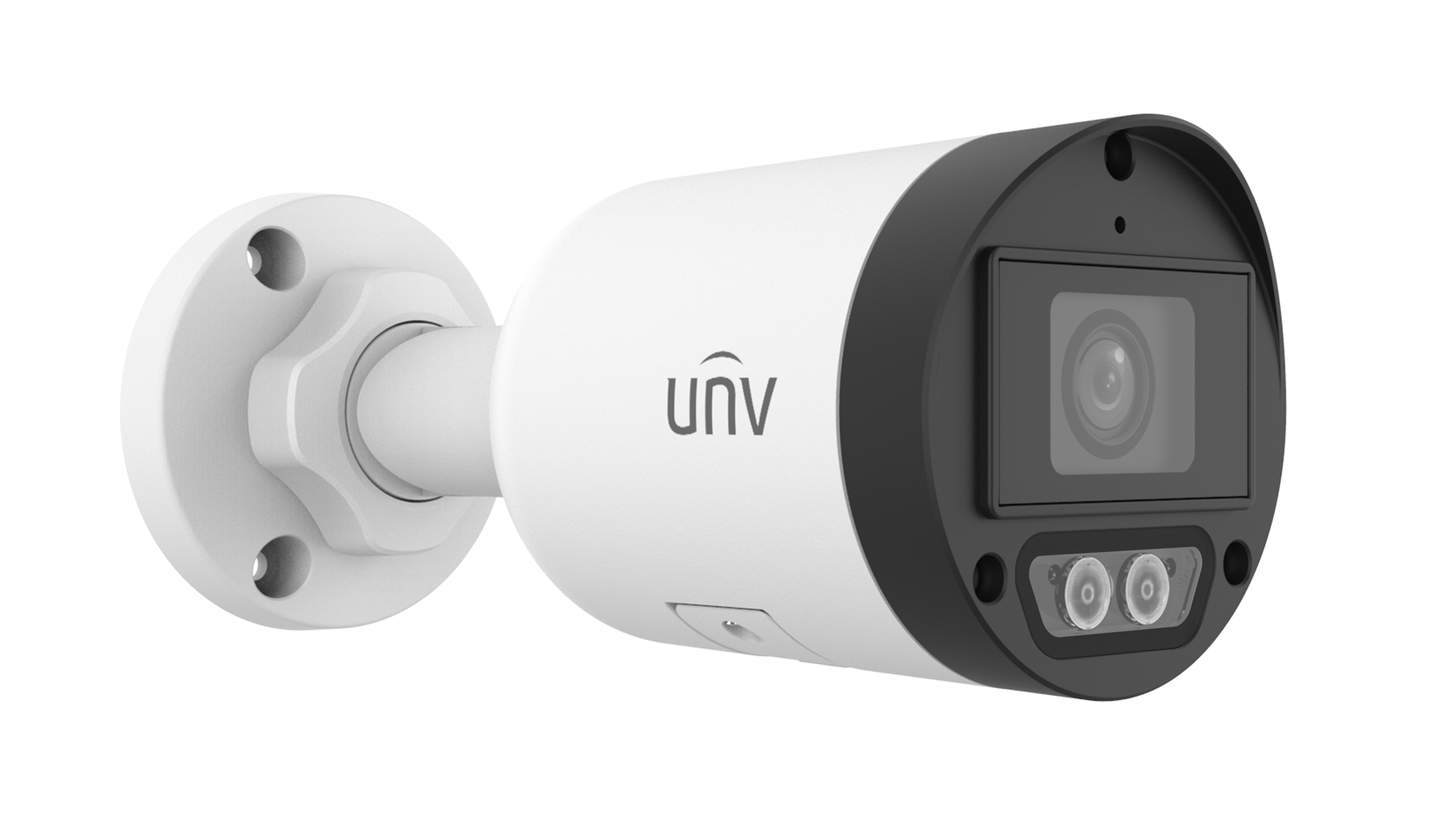

IPC2122LB-AF28K-DL / IPC2122LB-AF40K-DL

Description

Max Resolution

• 2 MP (1080P)

Sensor

• 1/2.9" CMOS

Min. Illumination

• Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with light

Day/Night / Shutter

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

• Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N / WDR

• S/N: >52 dB

• WDR: DWDR

Lens Specs

• Focal Length: 2.8 mm / 4.0 mm

• Iris Type: Fixed, Iris: F1.6

• Field of View (2.8 mm): H: 101.1°, V: 55.0°, D: 111.0°

• Field of View (4.0 mm): H: 83.7°, V: 44.6°, D: 89.1°

• Lens Type: Fixed

DORI Distance (2.8 mm)

• Detect: 45.0 m (147.6 ft.)

• Observe: 18.0 m (59.1 ft.)

• Recognize: 9.0 m (29.5 ft.)

• Identify: 4.5 m (14.8 ft.)

DORI Distance (4.0 mm)

• Detect: 64.3 m (211.0 ft.)

• Observe: 25.7 m (84.3 ft.)

• Recognize: 12.9 m (42.3 ft.)

• Identify: 6.4 m (21.0 ft.)

Illuminator

• Supplemental Light: Dual light

• Illumination Distance (IR): 30 m (98.4 ft)

• Illumination Distance (Warm Light): 30 m (98.4 ft)

• Wavelength: 850 nm

• IR On/Off Control: Auto/Manual

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps

• Sub Stream: 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps

• Video Bit Rate: 128 Kbps to 6144 Kbps

• U-code / ROI / Video Stream: Support (Main stream) / Support / Dual streams

Image Settings

• OSD: Up to 4 OSDs

• Privacy Mask: Up to 4 areas

• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

• Smart IR / Digital Noise Reduction: Support / 2D/3D DNR

• Flip: Normal, Flip vertical, Flip horizontal, 180°

• HLC / BLC / Defog: Support / Support / Digital defog (Dewarping: N/A)

Events & Intelligent

• Basic Detection: Human body detection, Motion detection, Audio detection

• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A

• Audio Bitrate: 64 Kbps

• Built-in Mic: Support

• Two-way Audio / Speaker: N/A

• Suppression / Sampling Rate: Support / 8 kHz

Storage

• Edge Storage: MicroSD, up to 512 GB

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SNMP

• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

• Client: EZStation, APP

• Web Browser: Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+. Plug-in free: Chrome 57+, Firefox 58+, Edge 16+

Interface

• Built-in Mic: Support

• Audio I/O / Alarm I/O / Serial Port / WIFI / Video Output / Built-in Speaker: N/A

• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130), FCC (FCC 47 CFR part15 B)

• Safety: CE LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

• Protect{C}ion: IP67 (IEC 60529)

General

• Power: DC 12 V±25%, PoE (IEEE 802.3af)

• Power Consumption: Max. 4.5 W

• Power Interface: Ø5.5 mm coaxial power plug

• Dimensions: 162 mm × 67 mm × 67 mm (6.4" × 2.6" × 2.6") (L × W × H)

• Weight: 0.24 kg (0.53 lb)

• Material: Metal + Plastic

• Working / Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

• Surge Protection / Reset Button: 4 KV / N/A

• Web Client Language: 4 Languages: English, Russian, Spanish, Vietnamese
