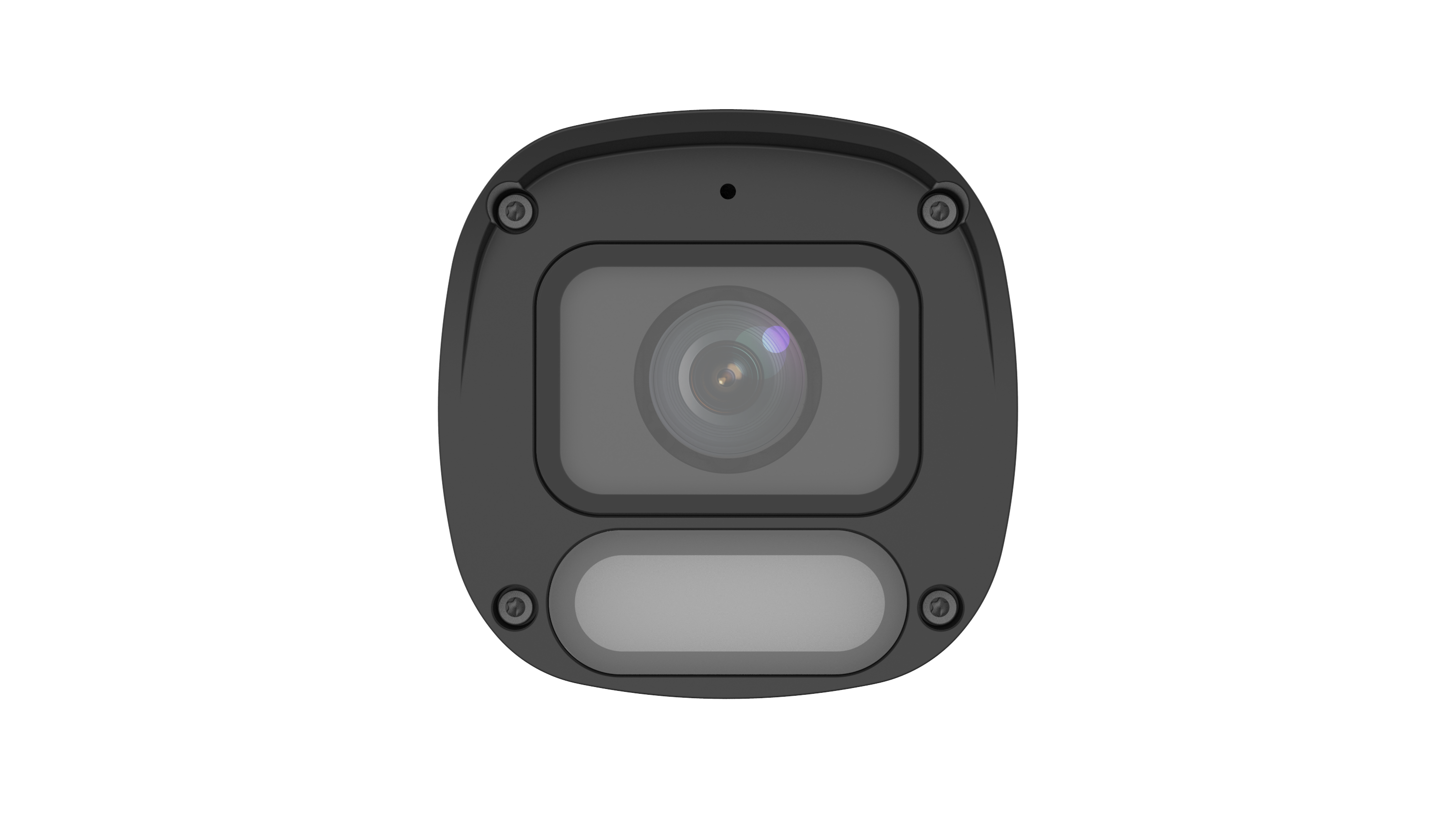

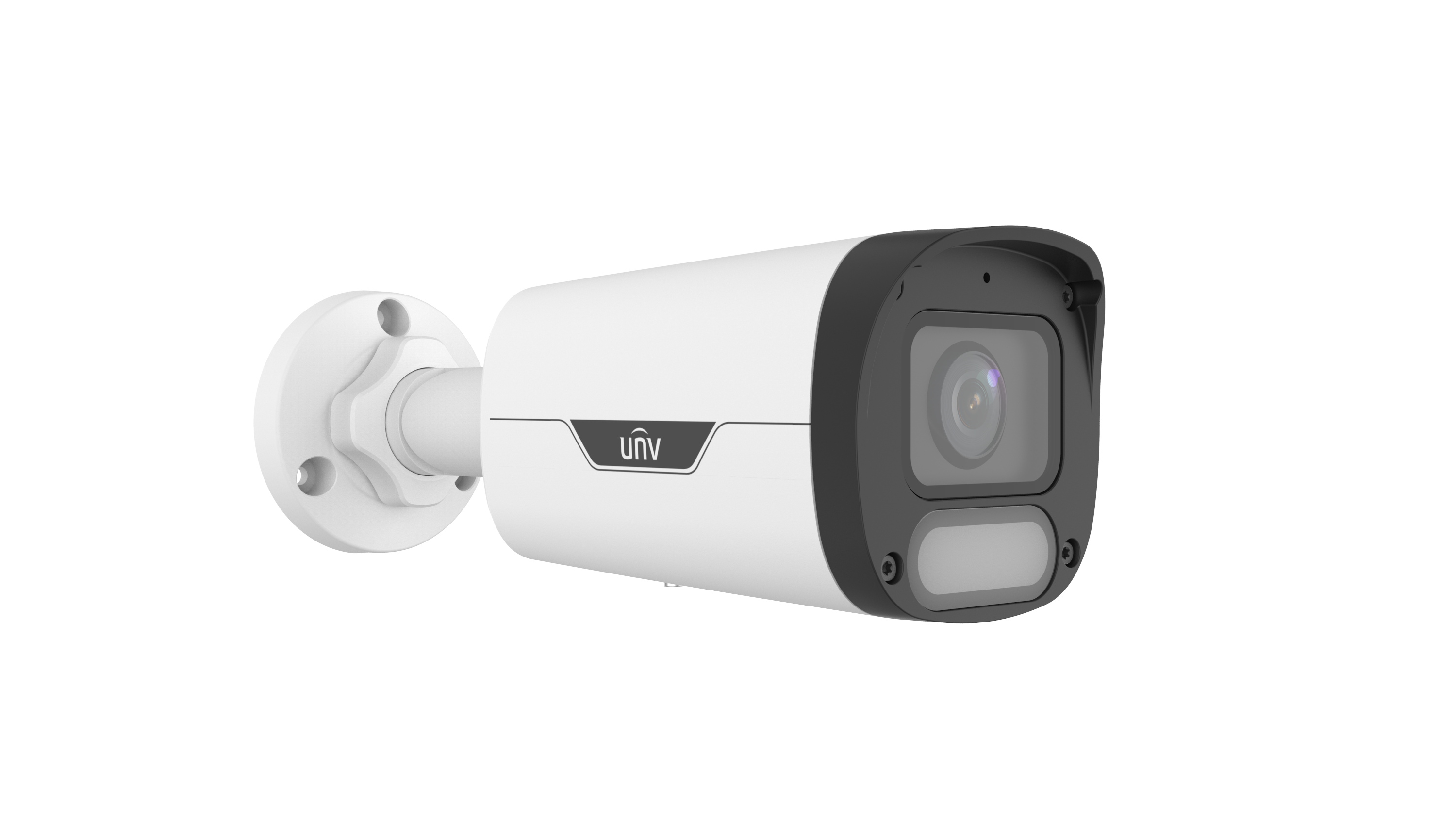

IPC2318LE-ADF28KM-WP / IPC2318LE-ADF40KM-WP

Description

Max Resolution

• 8 MP (4K)

Sensor

• 1/1.8" CMOS

Min. Illumination

• Color: 0.0003 Lux (F1.0, AGC ON)

Day/Night / Shutter

• Day/Night: N/A (Full-Color)

• Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

• Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N / WDR

• S/N: >52 dB, WDR: True WDR (120 dB)

Lens Specs

• Focal Length: 2.8 mm / 4.0 mm

• Iris Type: Fixed, Iris: F1.0

• Field of View (2.8 mm): H: 111.0°, V: 63.0°, D: 131.0°

• Field of View (4.0 mm): H: 94.2°, V: 51.0°, D: 111.7°

DORI Distance (2.8 mm)

• Detect: 63.0 m (206.7 ft.)

• Observe: 25.2 m (82.7 ft.)

• Recognize: 12.6 m (41.3 ft.)

• Identify: 6.3 m (20.7 ft.)

DORI Distance (4.0 mm)

• Detect: 90.0 m (295.3 ft.)

• Observe: 36.0 m (118.1 ft.)

• Recognize: 18.0 m (59.1 ft.)

• Identify: 9.0 m (29.5 ft.)

Illuminator

• Supplemental Light: Warm light

• Illumination Distance (Warm Light): 30 m (98.4 ft)

• Light On/Off Control: Auto/Manual

• Smart Illumination: Support

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Main Stream: 8 MP (3840 × 2160), max. 20 fps; 5 MP (3072 × 1728), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps

• Sub Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps

• Video Bit Rate: 128 Kbps to 6144 Kbps

• U-code / ROI / Video Stream: Support / Up to 8 areas / Dual streams

Image Settings

• OSD: Up to 4 OSDs

• Privacy Mask: Up to 4 areas

• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

• Digital Noise Reduction: 2D/3D DNR

• Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

• HLC / BLC / Defog: Support / Support / Digital defog (Dewarping / Image Stabilization: N/A)

Events & Intelligent

• Smart Intrusion Prevention (Lite): Intrusion detection, Cross line detection (both based on human body and vehicle detection

• Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection

• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A

• Audio Bitrate: 64 Kbps

• Built-in Mic: Support

• Two-way Audio / Speaker: N/A

• Suppression / Sampling Rate: Support / 8 kHz

Storage

• Edge Storage: MicroSD, up to 512 GB

• Network Storage: ANR, NAS (NFS)

Interface

• Built-in Mic: Support

• Audio I/O / Alarm I/O / Serial Port / WIFI / Video Output / Built-in Speaker: N/A

• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

• EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)

• Safety: CE LVD (EN 62368-1), UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

• Protection: IP67 (IEC 60529)

General

• Power: DC 12 V±25%, PoE (IEEE 802.3af)

• Power Consumption: Max. 3.9 W

• Power Interface: Ø5.5 mm coaxial power plug

• Dimensions: 206 mm × 73 mm × 73 mm (8.1" × 2.9" × 2.9") (L × W × H)

• Weight: 0.48 kg (1.06 lb)

• Material: Metal (આખો મેટલ બોડી છે)

• Working / Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

• Surge Protection / Reset Button: 4 KV / Support

• Web Client Language: 13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
