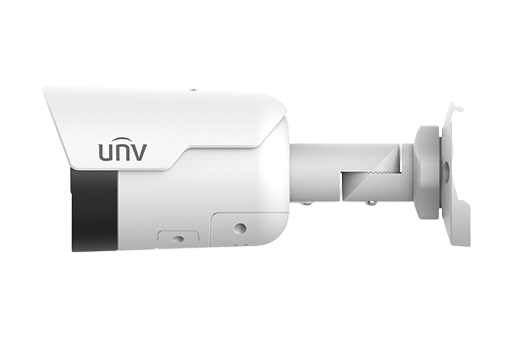

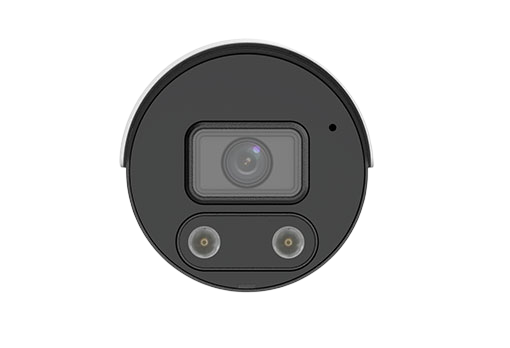

IPC2122LE-ADF28KMC-WL / IPC2122LE-ADF40KMC-WL

Description

Max Resolution

• 2 MP (1080P)

Sensor

• 1/2.8", 2.0 megapixel, progressive scan, CMOS

Min. Illumination

• Colour: 0.002Lux (F1.6, AGC ON), 0Lux with light

Day/Night / Shutter

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle

• Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

S/N / WDR

• S/N: >52dB

• WDR: 120dB

Lens Specs

• Focal Length: 2.8mm @F1.6 / 4.0mm @F1.6

• Field of View (2.8mm): H: 106.7°, V: 57.1°, O: 115.7°

• Field of View (4.0mm): H: 87.5°, V: 46.3°, O: 92.4°

DORI Distance (2.8mm)

• Detect: 43.4 m

• Observe: 17.4 m

• Recognize: 8.7 m

• Identify: 4.3 m

DORI Distance (4.0mm)

• Detect: 62.1 m

• Observe: 24.8 m

• Recognize: 12.4 m

• Identify: 6.2 m

Illuminator

• IR Range: Up to 30m (98ft) IR range

• White Light Range: Up to 30m (98ft) white light range

• Wavelength: 850nm

• IR On/Off Control: Auto/Manual

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps

• Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps

• Video Bit Rate: 128 Kbps~6 Mbps

• Corridor Mode / OSD / Video Stream: 9:16 Corridor Mode Supported / Up to 4 OSDs / Dual streams

Image Settings

• Privacy Mask: Up to 4 areas

• ROI: Up to 8 areas

• Motion Detection: Up to 4 areas

• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

• Smart IR: Supported

• Digital Noise Reduction: 2D/3D DNR

• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

• HLC / BLC / Defog: Supported / Supported / Digital Defog (Dewarping: N/A)

Smart & Events

• Behavior Detection: Cross line, intrusion (based on human body detection)

• Basic Detection: Motion detection, tampering alarm, audio detection

• General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Audio

• Audio Compression: G.711

• Two-way Audio: Supported

• Built-in Mic / Built-in Speaker: Supported / Supported

• Suppression / Sampling Rate: Supported / 8KHZ

Storage

• Edge Storage: Micro SD, up to 128GB

• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP

• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API

• Client: EZStation, EZView, EZLive

• Web Browser: Plug-in required: IE9+, Chrome 41 and below, Firefox 52 and below. Plug-in free: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Built-in Mic / Built-in Speaker: Supported / Supported

• Network: 10/100M Base-TX Ethernet

Certifications

• Certifications: CE: EN 60950-1, UL: UL60950-1, FCC: FCC Part 15

• Ingress Protection: IP67

General

• Power: DC 12V±25%, PoE (IEEE 802.3af)

• Power Consumption: Max 9.0W

• Dimensions: 191×75×74mm (7.5”×2.9”×2.9”) (L × W × H)

• Net Weight: 0.41kg (0.90lb)

• Material: Metal

• Working / Storage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

• Surge Protection / Reset Button: 4KV / N/A
