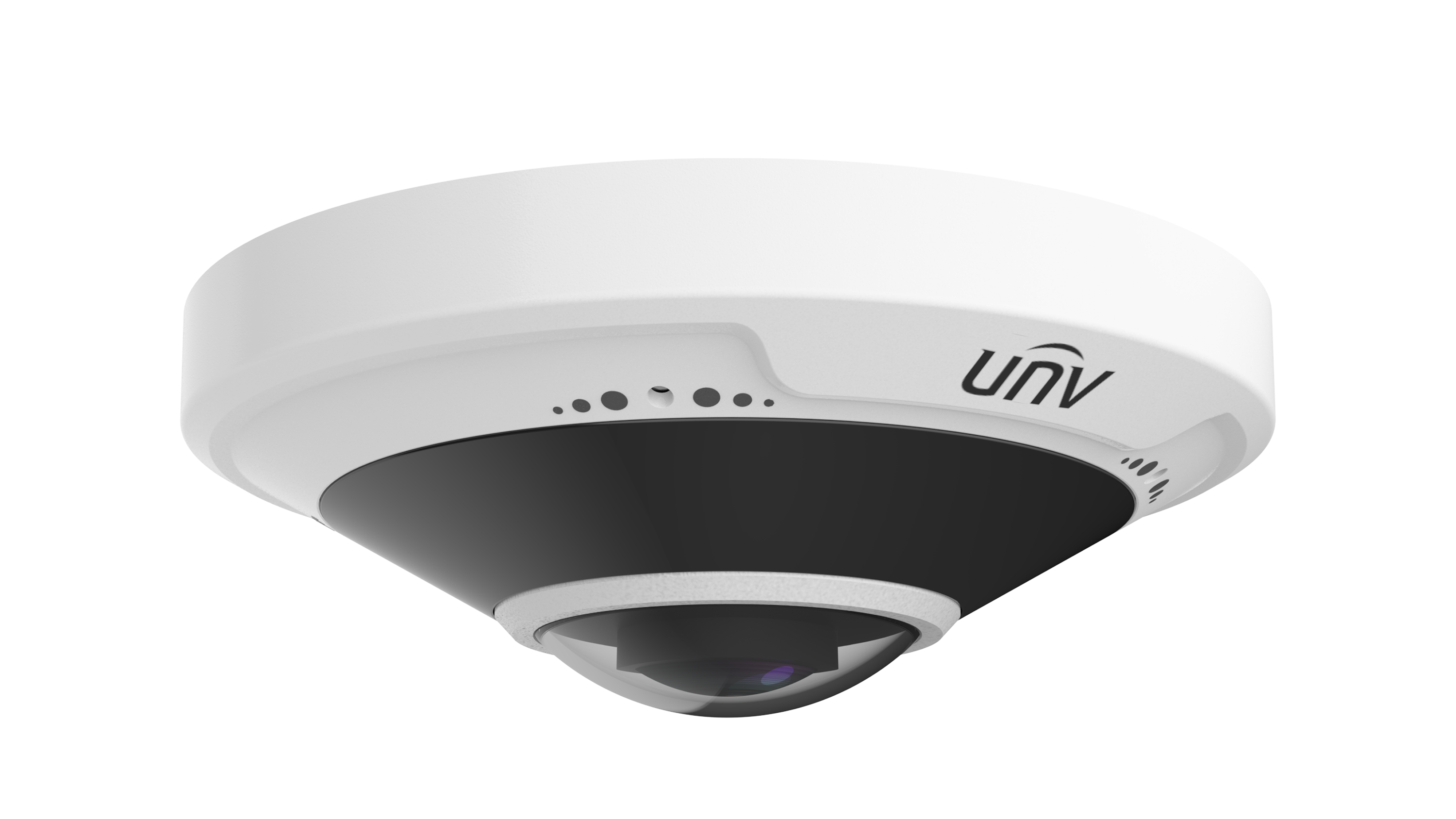

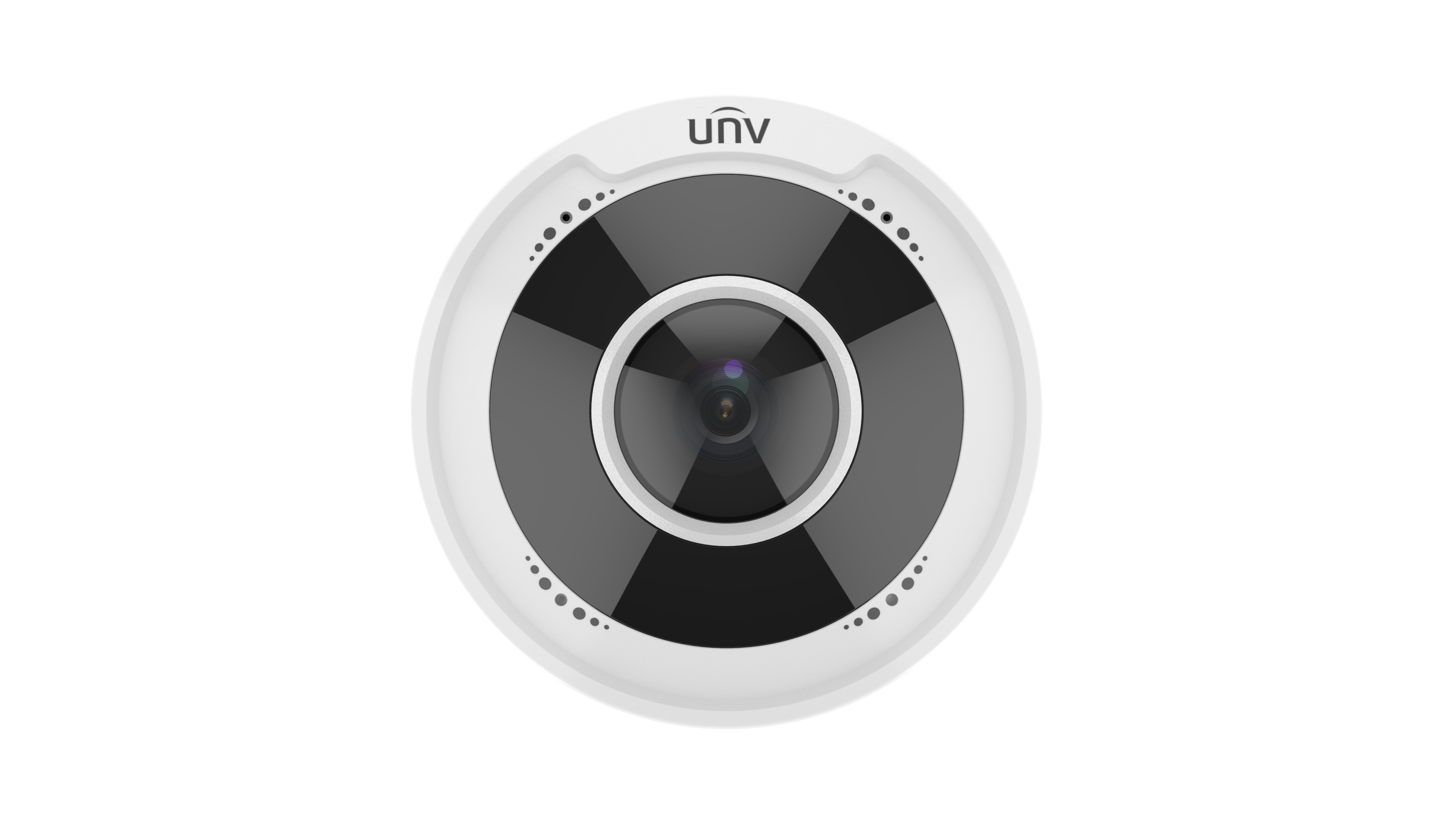

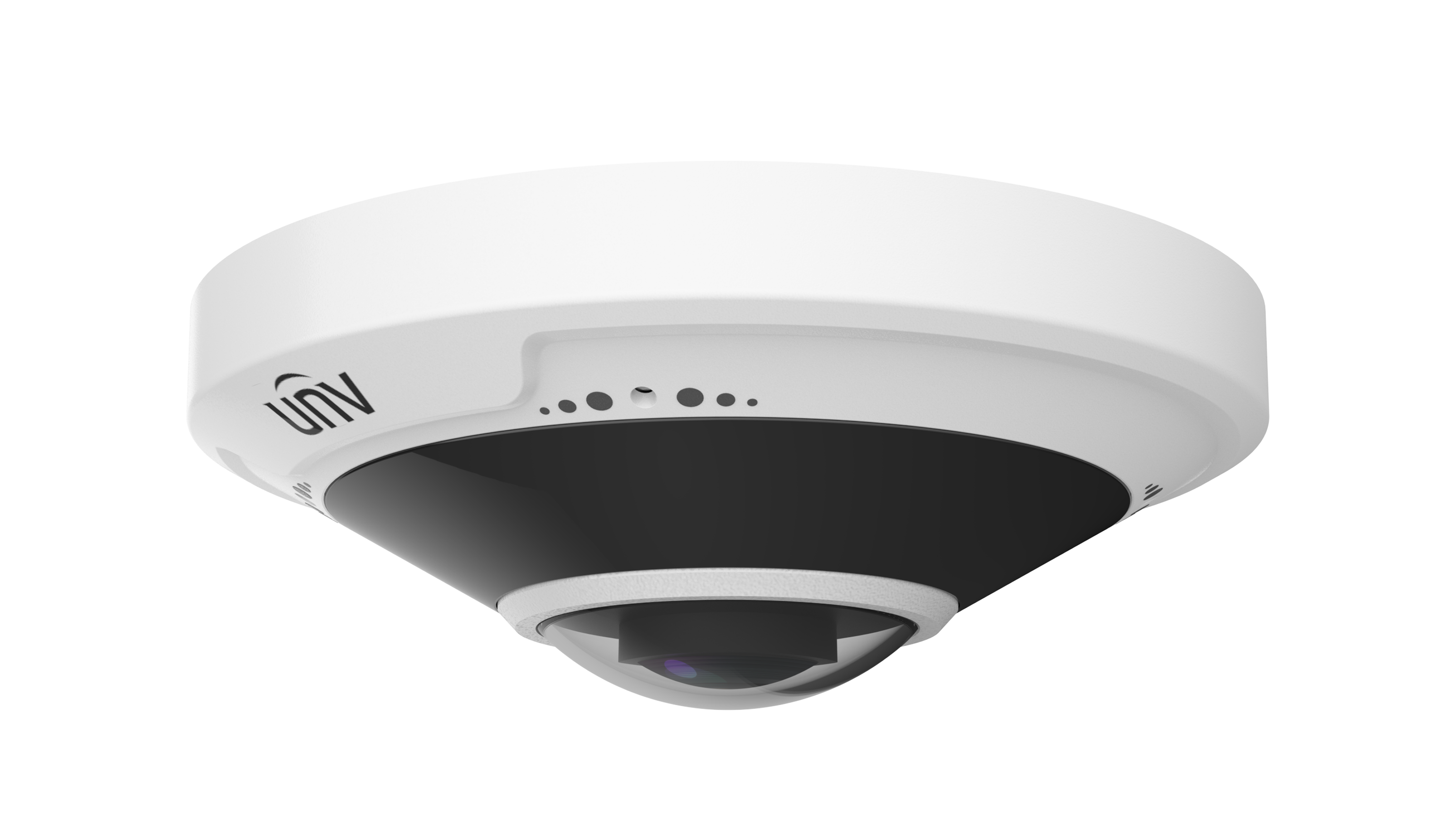

IPC815SB-ADF14K-I0

Description

Max Resolution

• 5 MP

Sensor

• 1/2.8" CMOS

Min. Illumination

• Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR

Day/Night / Shutter

• Day/Night: IR-cut filter with auto switch (ICR)

• Shutter: Auto/Manual, 1 ~ 1/100000s

Lens Specs (Fisheye)

• Focal Length: 1.4 mm

• Lens Type: Fixed

• Iris Type: Fixed, Iris: F2.0

• Field of View: Horizontal: 180°, Vertical: 180°, Diagonal: 180°

DORI Distance (1.4 mm)

• Detect: 31.5 m (103.4 ft)

• Observe: 12.6 m (41.3 ft)

• Recognize: 6.3 m (20.7 ft)

• Identify: 3.2 m (10.5 ft)

Illuminator

• Supplemental Light: IR

• Illumination Distance (IR): 10 m (32.8 ft)

• IR On/Off Control: Auto/Manual

• Wavelength: 850 nm

Live View Display (Software Decoding)

• Ceiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye+4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ

• Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye+4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ

• Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ

• Hardware Decoding: N/A

Video Compression & Frame Rate

• Video Compression: Ultra 265, H.265, H.264, MJPEG

• H.264 Code Profile: Baseline profile, Main profile, High profile

• Main Stream: 5 MP (2592 × 1944), max. 30 fps

• Sub Stream (Fisheye View): 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps

• Third Stream (Fisheye View): D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps

• Video Bit Rate: 128 Kbps to 16 Mbps

• U-code / ROI / Video Stream: Support / Support / Triple streams

Image Settings

• OSD: Up to 8 OSDs

• Privacy Mask: Up to 4 areas

• White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

• Smart IR / Digital Noise Reduction: Support / 2D/3D DNR

• Flip: Normal, Flip vertical, Flip horizontal, 180°

• BLC / Defog: Support / Digital defog

• HLC / Dewarping / Image Stabilization: N/A

Intelligent & Events

• Statistical Analysis: Heat map (Working with management platform)

• Basic Detection: Motion detection, Tampering alarm, Audio detection

• General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

• Audio Compression: G.711U, G.711A, AAC-LC

• Audio Bitrate: G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps

• Two-way Audio: Support

• Built-in Mic: Built-in dual-mic

• Suppression: Support

• Sampling Rate: G.711U/G.711A: 8 kHz; AAC-LC: 8 kHz, 16 kHz, 48 kHz

• Built-in Speaker: N/A

Storage

• Edge Storage: MicroSD, up to 512 GB

• Network Storage: ANR, NAS (NFS)

Network

• Protocols: IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

• Compatible Integration: API, SDK, ONVIF (Profile S, Profile G, Profile T, Profile M)

• User/Host: Up to 32 users, 3 user levels: administrator, common user, and operator

• Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

• Client: EZStation, APP

• Web Browser: Plug-in required: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Interface

• Audio I/O: 1 Input (impedance 35 kΩ, amplitude 2 V [p-p]), 1 Output (impedance 600 Ω, amplitude 2 V [p-p])

• Alarm I/O: 1 Input / 1 Output

• Network: 1 × RJ45 10 M/100 M Base-TX Ethernet

• Serial Port / WIFI / Video Output / Built-in Speaker:

General

• Power: DC 12 V±25%, PoE (IEEE 802.3af)

• Power Consumption: Max. 8.5 W

• Power Interface: Ø5.5 mm coaxial power plug

• Dimensions: Ø125 mm × 43.7 mm (Ø4.9" × 1.7") (Ø × H)

• Weight: 0.36 kg (0.79 lb)

• Material: Metal + Plastic

• Working / Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)

• Surge Protection / Reset Button: 4 KV / Support

• Web Client Language: 20 Languages (Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnam
