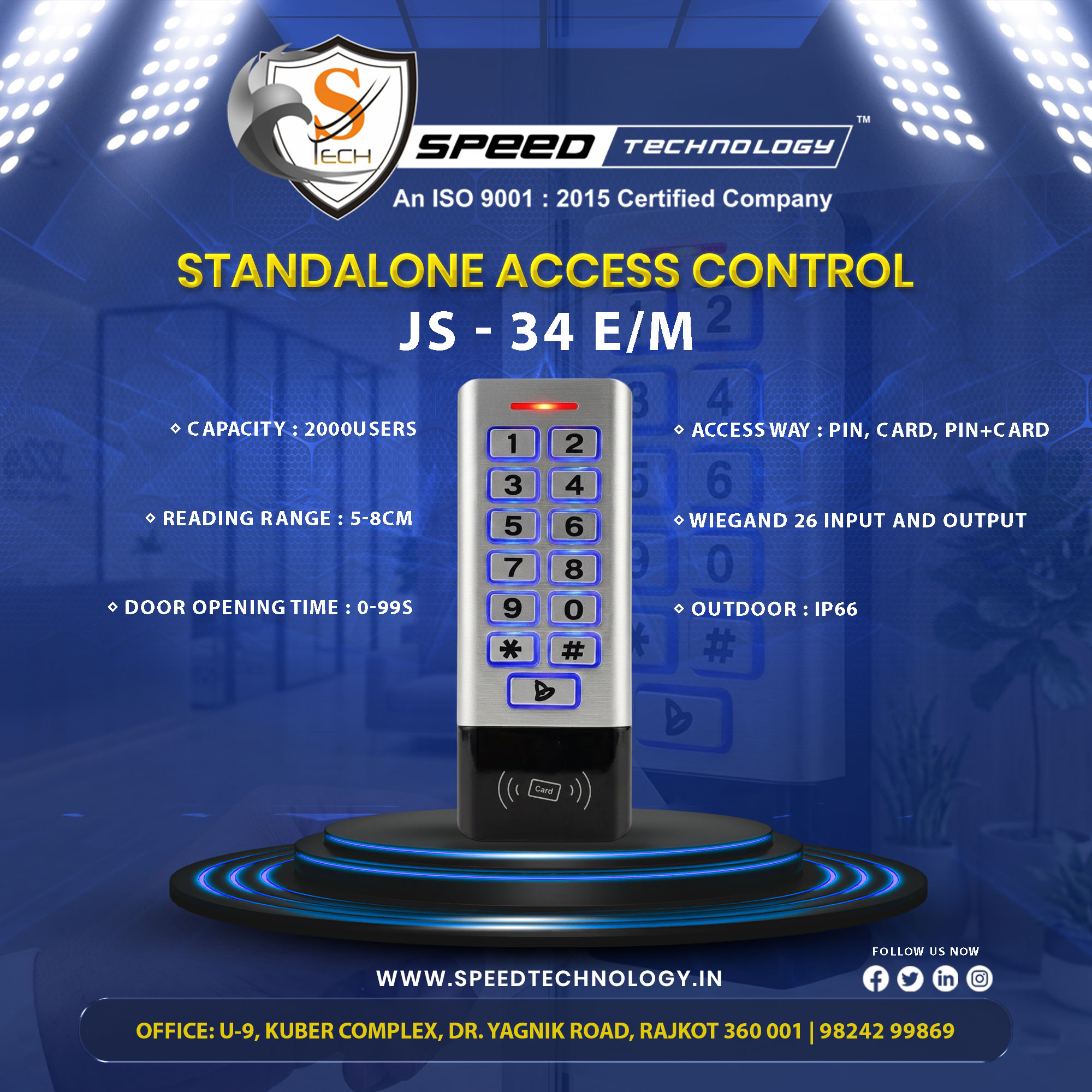

JS - 34 E/M
(ESSL)
Capacity : 2000cards/codes ,
Three accesses : card, Pin, Card+Pin,
Outdoor: IP66
Capacity : 2000cards/codes
Three accesses : card, Pin, Card+Pin
Outdoor: IP66
Static electricity : < 30mA
Ambient temperature : -450C~600C
Electric lock output : < 3A
Short-circuit Protect : < 100μ5
Card type : EM/MF
Working voltage : DC12V+10%
Reading Range : 5-8cm
Humidity : 10% to 90% RH
Door Opening Time : 0-99s (Adjustable) Backlight keypad Metal case, anti-vandal Multi-function standalone access controller and reader, WG26 Input / output
Ultra-low Power: The standby current is less than 30mA.
Wiegand Interface: It supports WG26 or WG34 input and output.
Searching time: It takes less than 0.1s to search after reading a card.
Backlight keypad: This feature allows for easy operation at night.
Doorbell interface: The device supports an external wired doorbell.
Access ways: Users can gain access via card, PIN code, or a combination of both.
Independent codes: You can use codes without an associated card.
Change codes: Users have the ability to change their codes independently.
Delete users by card No.: If a card is lost, it can be deleted using the keyboard.
